Basic Info.
Automatic Grade
Automatic
Application Place
Factory
Applicable Thickness
Middle Thickness Material
Needle Number
Twelve Needles
Embroidery Type
Towel Embroidery, Patch Embroidery, Clothing Embroidery, Hat Embroidery, Flat Embroidery
Keywords
Embroidry Machine
Embroidery Area
500*1200mm
Warranty of Core Components
1 Year
Key Selling Points
Automatic
Overall Dimensions
1090X750X1530mm
Type
Taping Embroidery Machine
Product Name
Single Head Cap Embroidery Machine
Product Type
Home Embroidery Machine Embroidery Designs
Transport Package
Woodencase Packing
Production Capacity
50 Set/Sets Per Month
Product Description

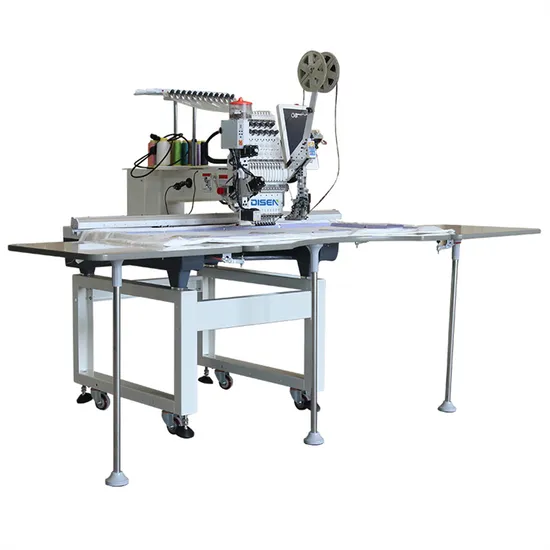

Product Description Specification MODEL: 1201 Single Head 12 Needles Embroidery Machine 1.Suitable for flat embroidery, cap embroidery and finished garments
embroidery, T-shirt embroidery, logo embroidery etc.
2. Embroidery area: 500*350mm
3. Controller: 10" Touch Screen Dahao A15
System,User-Friendly Interface
4. High speed specialized cap embroidery heads,with double cam,double lever, by motorized jump.
5.Automatic thread trimmer
6. The running speed:100- 1200rpm
7. 280 degree Wide cap frame unit
8. Automatic color change and thread break detection
9. Start, Stop and emergency Stop Button
10.Design Tracing Available
11.One-Step Tracing
12. 10'' touch screen display control pannel, showing real time stitching
13. Memory size: 500 Patterns,200 Million stitches
14. Computer Reads Multiple Design Formats.Such As DST.DSB And More.
15. USB port
16.Networkable And Wi-Fi capable
17. Control system can be updated easily
18. Multi-languages:, Chinese, English, Spanish, Turkish, Russian.. French, Portuguese, Arabic,Thai, Italian,German, Dutch,Polish
19. Electricity: 110V/60Hz or 220V/50Hz Selfadaptable worldwide available
20.Equip With Laser Positioning
21.Woodencase Packing.
22.Machine Size: 1090x750x1530MM Packing Size:850x835x900mm
23.Net Weight:150KG Gross Weight:180KG Other related product parameters
Model | DSC-J1202/J1502 | DSC-J1204/J1504 | DSC-J1206/J1506 |
Head | 2 | 4 | 6 |
Needles | 12/15 | 12/15 | 12/15 |
Working Area | 400*500mm | 400*450mm | 400*450mm |
Computer | Dahao A15 | Dahao A15 | Topwisdom 512 |
Speed | 1200 RPM | 1200 RPM | 1200 RPM |
Size | 1200*1210*1630mm | 1920*1320*1630mm | 2720*1320*1630mm |
Packing Size | 1480*1030*1050mm | 2180*1110*1000mm | 2910*1160*1510mm |
Net Weight | 310KG | 450KG | 850KG |
Gross Weight | 400KG | 590KG | 1070KG |
