KL6Ex water proof mining led light
ATEX Certificate No.: Baseefa09ATEX0205-Issue 3
in accordance with Directive 2014/34/EU:
EN 60079-0: 2012
EN 60079-11: 2012
EN 60079-35-1: 2011
EN 50303:2000

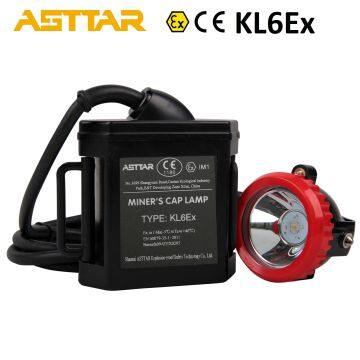

Cap lamp KL6Ex is specially designed for use in underground coal mining operations.
KL6Ex utilizes 6000mAh capacity lithium-ion batteries, the batteries are sealed in a high impact-resistand and water-resistant ABS enclosure, maintenance for free.
KL6Ex adopts high power LED light source, with 1 main light for working and 4 auxiliary lights for emergency lighting. The main light max illumination reaches to 7000Lux, working time more than 17 hours.
The head piece and battery box are connected by a cable with length of 1.45 meters, the head piece with a stainless steel clip that can be attached to a safety helmet, the lamp net weight is around 630g.
Technical data
Battery capacity
| Li-ion, 6000mAh
|
Rated voltage
| 3.7V
|
Lighting time
| > 17 hours
|
Main light source
| Working current
| 0.28A
|
Illumination
At a distance of 1m apart from the lamp
| Lighting begin
| ≥5500Lux
|
After 11 hours
| ≥5000Lux
|
Auxiliary light source
| Working current
| 0.06A
|
Cap lamp lifespan
| 2 years
|
Charging time
| | Charging voltage
| (6~8)V
|
Charging cycle
| > 800 cycles
|
Explosion protection type
| Ex ia I Ma
|
Ingress protection
| IP65
|
Dimension
| Headpiece: Φ71×75 mm, Battery pack: (72*65*18)mm
|
Weight
| 630g
|
Cable length
| 1.45m
|
>>
