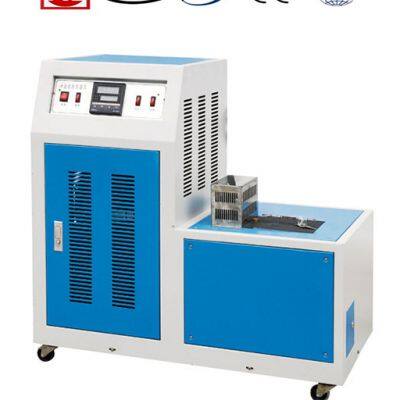

Model WDC Series Low temperature Chamber for Impact Specimen

Product Description

Product Description
Applications:
The series is designed according to Charpy notch Impact Test Method for Metal Material, and adopts compressor cooling technology. It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact specimen with the reliable performance. Digital display, automatic control temperature, and it is the ideal equipment for cooling and keeping temperature to impact specimen.
Main Specifications

Model		WDC-30	WDC-60	WDC-80	WDC-100
Temperature control range		＋30℃～－30℃	＋30℃～－60℃	＋30℃～－80℃	＋30℃～－100℃
Constant temperature accuracy		≤±0.5ºC
Temperature dropping speed	＋30℃～0℃	1.8℃/min	1.5℃/min	1.5℃/min	1.5℃/min
	0℃～－20℃	0.8℃/min	1.2℃/min	1.2℃/min	1.2℃/min
	－20℃～－40℃	0.5℃/min	1.0℃/min	1.0℃/min	1.2℃/min
	－40℃～－60℃		0.7℃/min	0.8℃/min	1.0℃/min
	－60℃～－80℃			0.5℃/min	0.8℃/min
	－80℃～－100℃				0.5℃/min
Dimension		800×510×480mm	800×510×750mm	1200×700×800mm	1200×700×800mm
Effective working space		120 ×120 ×80mm
Specimen quantity		more than 60 pcs
Specimen dimension		10x10x55mm
Cooling media		Alcohol or others

---
