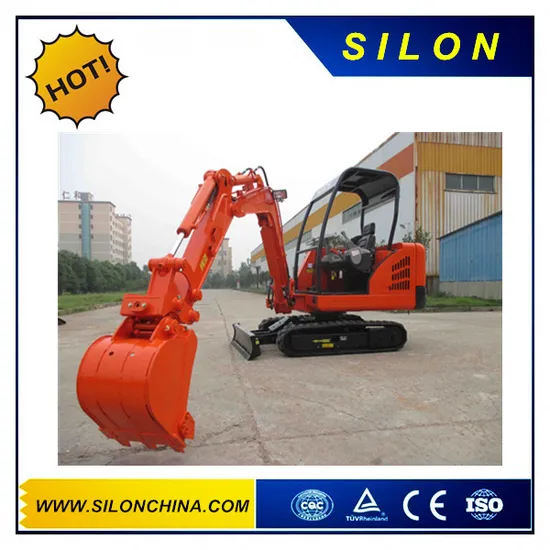

Silon 2.5t Mini Excavators on Hot Sales (NT25)

Product Description

Product Description

Hydraulic crawler excavators heavy machinery NT25
1. Operation weight: 2500kg
2. Standard bucket :0.07M3
3. Max. Digging height: 4000mm
4. Eton hydraulic system
5. Engine: Chinese Chai Chai or Lai Dong
6. Original KAWASAKI electronic system
7. Cabin with A/C, ROPS/FOPS
8. With break hammer
A. Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
B. Low emission meets the Europe II standard.
C. The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
D. The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
E. Automatic preheating system improves the working capacity in the low temperature.
F. Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
G. Restart prevention system effectively avoids the misoperation, and improve s the use security of the machine.
Product Parameters

Working Range
Boom Length	2170mm
Arm Length	1100mm
Max Digging Reach	4400mm
Max Digging Depth	2712mm
Max Digging Height	4000mm
Max Dumping Height	2920mm
Mini Swing Radius	1865mm
Rear Swing Radius	1310mm
Max Ground Digging Range	4300mm
Max Vertical Digging Depth	1550mm
Performance Parameter
Machine Weight	2400kg
Engine Model	Changchai
Power	22kw/2400rpm
Hydraulic System	20mpa
Swing System	12rpm
Travel Speed	0-4.5km/
Bucket Digging Force	16.3kn
Arm Digging Force	11.2kn
Grade Ability	30%
Ground Pressure	33kp
Overall Dimension
Overall Length	4425mm
Overall Width	1330mm
Overall Height	2330mm
Mini Ground Clearance	225mm
Track Width	450mm
Track Gauge	230mm
Buck Capacity	0.07m3

Detailed Photos

Certifications
Packaging & Shipping
Company Profile
Our Advantages

---
