Hot Selling China Lifting Electromagnet for Bundled Rebars

Product Description

Hot selling China Iifting electromagnet for bundled rebars

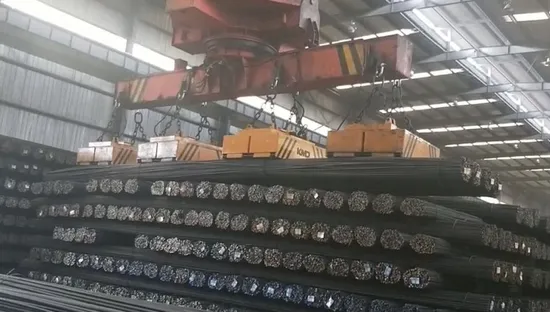

This series which adopts unique magnetic circuit has good advantages in heat dispersion, penetration,(for example it can penetrate air gap through multiple layers) and can lift and transport bar material, flat iron and angle iron in unpacked or simple packed situation. It improves problem like big deflection when lift round steel and thread steel. There are two kinds: normal & high temperature type. Normally multiple units are used in operation, so two or four connection points are used for linking hanging beam. We made an example of two connection-points linking way in this catalog. Please let us know your specific requirement before you place an order.
MW38 normal temperature type main technical data(rated voltage DC-220V, duty cycle TD-60%)

Model	Cold-state power(kW)	Cold-state current(A)	Mass(kg)specification of attached material	units		Bundles
MW38-10095L/1	7.9	35.9	bundles length=12m, diameter ≤φ400mm, weight≤3.5t	4 3 2		2
MW38-14095L/1	10.9	49.5				3
MW38-17095L/1	13.2	60				4
MW38-110100L/1	8.9	40.5				2
MW38-110110L/1	.19	41.4	bundles length=9m, diameter≤ φ400mm, weight≤4t			2
MW38-140110L/1	11.1	50.5				3
MW38-170110L	13.5	61.4				4

Complete lifting System:

Guide for Model Selection
1,What's the attached material? Choose the suitable series according to the attached material.
2,The specification of material attracted? such as weight,length,width or number.
3,The specification of hoist, such as: tonnage, height and brake type of hook.
4,The application environment, such as temperature of material attached, indoor or outdoor.
5,The cycle duty: when exceed 60%, choose high frequency type.
6, Selection of corollary equipment: cable reel and control cabinet.
KMD Introduction:
Established year: 1997
Staffs: 800
Engineer team: 180
Exported countries: 50, including India, Pakistan, Malaysia, Vietnam, Myanmar, Laos, Phillipines, Indonesia, USA, Spain, Turkey, Russia, Ukrain, Saudi Arabia, etc.
Certifications: CE, ISO9001, ISA

---
