US$16,700.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Bore Stroke
Three Cylinder,Water Cool
Platform Ground Clearanve
473mm
Platform Back Turning Radius
740mm
Chassis Ground Clearance
460mm
Bucket Digging Force
13.5kn
Transport Package
4 Sets in 20gp
Specification
3290mmx1050mmx2400mm
Production Capacity
3000sets/Year
Product Description

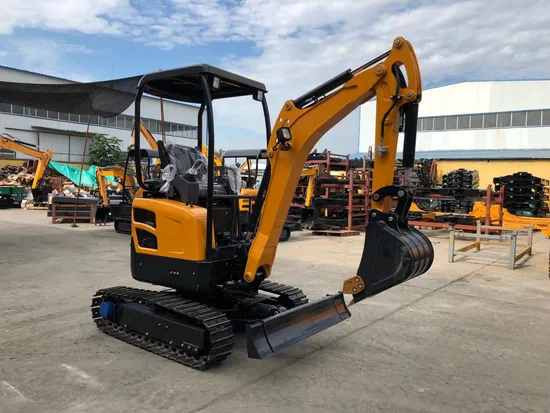

WOLF WE20 2 Ton mini Excavator with Rubber Track
Product Feature And Advantage
Zero tail design,small size and easy to transport, could be loaded onto light truck or small trailer,extended track could reduce the width to 990mm. Original Kubota engine,reliable duration, low noise and high efficiency. Most advanced loading sensing system and self developed hydraulic debug technology ensure the machine's operation easy and comfortable. Famous brand hydraulic system parts ensure the stable quality. equipped with double fuel filter to guarantee fuel purity to protect engine boom deflection design meet narrow work condition, reinforced rubber track to protect road extend hydraulic line for various attachments. comfort seat make operator easy to work. Could be widely used in gardening, orchard, farming, basement reconstruction, waste residue carrying in coal washing factory, paper making factory etc. and could replace 4~5 manpower. Specifications:
| Engine Model | Kubota 14.2kW/2200rpm |
| Engine Type | Direct injection, water cooled, natural intake |
|
| No. of cylinder | 3 |
Swing Speed | r/min | 0-9 |
| Traveling Speed | km/H | 2.8 |
| Grade ability | % | 70(35°) |
| System rated pressure | Mpa | 21.5 |
| Ground Pressure | Kpa | 30 |
| Tracking Force | Kn | 15.2 |
| Bucket Digging Force | kN | 18 |
| Arm Digging Force | kN | 11 |
| Overall Length | mm | 3555 |
| Overall Width | mm | 990/1300 |
| Overall Height | mm | 2290 |
| Ground clearance | mm | 150 |
| Undercarriage width | mm | 990 |
| Dozer Blade | mm | 1050×240 |
| Operation Weight | KG | 1900 |
| Bucket Capacity | m3 | 0.07 |
| Max. Digging Radius | mm | 4040 |
| Max. Digging Depth | mm | 2400 |
| Max. Digging Height | mm | 3700 |
| Max. Dumping Height | mm | 2440 |
| Max. Dozer Cutting | mm | 270 |
| Max. Dozer Lifting | mm | 240 |
| Boom Deflexion (Left/Right) | ° | 75/45 |
| Tail Swing Radius | mm | 650 |
| | |
| WE08 | WE10 | WE18 |
| Operating Weight | 880 | Engine | KD192F-1 E5 | Operating Weight | 1800 |
| Digging Bucket Capacity | 0.025 | Rated Power | 7KW | Digging Bucket Capacity | 0.1 |
| Digging Bucket Width | 400 | Displacement | 6.8 | Max. Digging Depth | 2050 |
| Engine | KD192F-1 E5 | Operation Weight | 950 | Engine | Laidong |
| Rated Power | 7KW | Bucket Capacity | 0.023 | Rated Power | 18.1 |
| Displacement | 6.8 | Overall Length | 2840 | Tracking Force | 15 |
| Swing Motor | KEERSEN | Overall Width | 880 | Bucket Digging Force | 11.5 |
| Traveling Motor | USA EATON | Overall Height | 2200 | Arm Digging Force | 9.3 |
