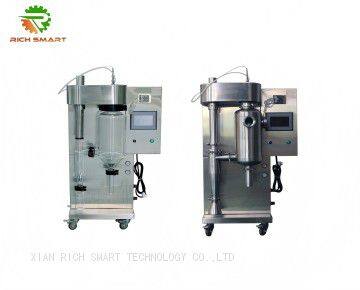

Usually, when laboratories or scientific research institutions are developing new products, in order to verify the scientificity and rationality of the experiment, they need to use lab spray dryer to test the materials. However, large-scale spray dryer wastes materials, and the two fluid nozzle spray dryer of imported brands is very expensive. Based on this background, the Richsmart engineering teams is the first manufacturer in China to develop two fluid nozzle spray dryer and promote mass production equipment, the most cost-effective manufacturer.
Product model
| RSmart-2L
|
Max evaporation capacity
| 2000ml/H（water）
|
Material contact part
| High borosilicate glass
| 304 Stainless Steel
|
Drying method
| Open heating drying system
|
Atomization condition
| Two-fluid atomizer (standard 1.0mm nozzle, optional 0.7, 1.5, 2.0, 3.0, etc.)
|
Hot air condition
| Air supply + parallel flow
|
Drying time
| 1～1.5S
|
Control system
| PLC+7-inch touch screen
|
Feeding method
| Peristaltic Pumps（0-580ml/min）
|
Minimum feed amount
| 50mL
|
Heater power
| 3KW
|
Inlet air temperature
| ～250℃; Continuously adjustable
|
Temperature control accuracy
| ±1℃
|
Variable frequency fan
| 0.55KW；140m³/min
|
Silent air compressor
| 0.55KW；0.8Mpa
|
Complete machine power
| 3.6KW/220V
|
Equipment size
| 780×610x1150mm(Length x Width x Height)
|
Complete machine weight
| 100KG
| 125KG
|
