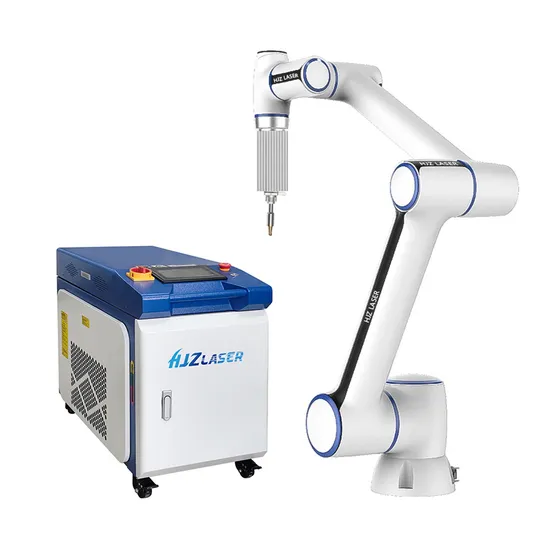

Hand Held 1000W Fiber Laser Welding Machine Top Quality Laser Welding Machine for Metal Sheet

Product Description

1000w Handheld Stainless Steel Laser Welding Machine For Sale
hand-held laser welding machine consists of the latest generation of fiber laser generator, wobble welding head and cabinet.
1.With simple operation, beautiful and smooth weld seam effect, fast welding
speed and no consumables needed during welding process.
2. Welding in thin metal plates such as stainless steel plates, iron plates and galvanized
plates can perfectly replace traditional argon arc welding and electric welding.

Product Picture



1. The weld seam is smooth and beautiful. The welded workpiece has no deformation, no welding scar,
and the welding is firm, which reduces the subsequent polishing, grinding process, and save time and cost.
2. Simple training, and operation. Beautiful products can be welded without the professional teacher guide.
Product Advantages
1. Independently developed wobble welding head is with swing welding mode, adjustable spot width, and strong welding fault tolerance. It expands the tolerance range of machining parts and weld seam width, and obtain better weld formation
2. Fast welding speed, 2-10 times faster than traditional welding.One unit of laser welding machine can replace at least two workers yearly.

Laser welding seldom needs consumables. It is with long life span, safer and more environmentally friendly.
Advantage Comparison

Comparison process	Tradition Welding	Fiber Laser Welding	Our HJZ Laser Welding
Heat input to the workpiece	Very High	Low	Low
Deformation of the workpiece, undercut	Big	Small	Small
Bond strength to base metal	General	Good	Very Good
Follow-up	Polish	No polish, or rarely polish	No polish, or rarely polish
Weld Speed	General	More than 2 times argon arc welding	More than 2 times argon arc welding
Applicable Material	Stainless steel ,Carbon steel, Galvanized sheet	Stainless steel, Carbon steel, Galvanized sheet	Stainless steel, Carbon steel, Galvanized sheet
Consumables	Need more consumables	Seldom need consumables	Seldom need consumables
Operation	complex	Normal	Simple
Operator safety	Unsafe	Safe	Safe
Environment protection	Not environmentally friendly	Environmentally friendly	Environmentally friendly
Welding fault tolerance	Excellence	Not good	Excellence
Wobble welding	No	No	Yes
Spot width adjustable	No	No	Yes
Welding quality comparison	Worse	Normal	Very Good

Performance and Technical Parameters

1. Technical Parameters

Serial No.	Specification Detail	Parameters
1	Device Name	Hand held fiber laser welding machine
2	Laser Power	500W,800W,1000W,2000W,3000W
3	Laser Wavelength	1070 NM
4	Fiber Length	Standard length: 10M Longest length(support): 15M
5	Working Mode	Continuous / Modulation
6	Welding Speed Range	0~120 mm/s
7	Water Chiller	Industrial thermostatic water tank
8	Working Environment Temperature	15~35 ºC
9	Working Environment Humidity	< 70% No condensation
10	Welding Thickness Eecommendations	0.5-3mm
11	Welding gap requirements	≤0.5mm
12	Operating Voltage	AC 220V

2.Welding penetration Melt depth data (wobble welding head):
Industry application
The hand-held laser welding machine can be widely used in complex and irregular welding processes in cabinet, kitchen and toilet supplies, stairs, elevators, shelves, ovens, stainless steel doors, and windows, guardrails, electric cabinet, stainless steel furniture and other industries.
Packing Detail
Why choose us
A. More than 10 years laser marking, welding, cleaning, processing, manufacturing, research and design rich experience.

B. Professional technical group for customized industrial laser marking system.
C. More than 3000+marking solution cases accumulated in domestic and oversea markets.
D. 100% strict QC for both raw materials and finished products.
E. Utility Model Patent Certificates,Nameplate Auto marking ,Engine cylinder block and head pass-type auto marking,
Automobile forged wheel hubs pass-type auto marking, copyright of computer software,etc.
F. ISO,CE,SGS certified and complete aftersales service team.

FAQ Q1: What type of the machine suitable for us?
Please tell us what products, material, size, thickness will be welded , we will advise you the suitable model machines. If you can provide products picture, it is better.

Q2: If we do not know how to use the machine,can you teach us?

Yes, we will. Our user manuals are together with goods shipment. We can also send operation video to you for study.
If you come to our factory in China, our technicians will offer you free training until you can use machine freely.

Our professional engineer can come to your country for trainning, installation, adjusting, ect.
Q3: How about the delivery time?
For standard machine, lead time is 10-15 days.
Regarding customized machine, we need to check with technicians.
Q4: How about the warranty time?

Our laser welding machine warranty time is 12 months. Please send back the broken parts to us, we will send the new and replaced one to you. We suggest you take one extra set of spare parts together with your order which will be more convinient for your production line continurous running.
