Hongyuan 4.0m3 Self Loading Concrete Mixer Cement Concrete Mixer

US$22,300.00-24,600.00 1 Piece (MOQ)

Basic Info.

Model NO.

HY400

Type

Concrete Mixer

Shotcrete Type

Wet

Machining Process

Hydraulic

Structure

Rotor Type

Productivity

35m²/h

Feeding Height

1380mm

Vibrating Amplitude

1.0mm

Certification

ISO9001: 2000, CE

Condition

New

Color

Yellow

Geometrical Volume

6 M3

Concrete Output

16-20cubic Meters Per Hour

Drum Rotating Speed

17 Rpm

Drum Slewing Angle

290°

Rated Power

75 Kw (125HP) @ 2200 Rpm

Max Torque

460n.M/1400rpm

Cylinder

Weighing Model

Computer Control

Transport Package

40hq

Specification

4 m3

Trademark

Newindu

Origin

Shandong, China

HS Code

87054000

Production Capacity

500

Product Description

HONGYUAN 4.0m3 Self Loading Concrete Mixer Cement Concrete MixerProduct Description:
* Output per lot: 6.5 cubic metres * Drum rotation: discharge port height 2.2 meters, tank horizontal rotation 270 tank can be raised and lowered * ENGINE: ycd4p22t 125, diesel, water-cooled, 4 cylinders, 2400 RPM, rated power 91KW * Drive mode: The engine is directly connected to the 315 torque converter through the drive shaft to the transmission with dual high and low speed through the drive shaft to the front and rear axles to achieve 4-wheel drive * Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat * Hydraulic System: closed oil, axial piston motor, three gear pump to participate in the work, tank adjustable speed.
Product Parameters:

Engine	Type	Chinese Brand
	Rated Power/RPM	95KW/2200RPM
	Max.Torque/RPM	460N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Output capacity	4M3
	Bank Angle	16 °
	Rotation Angle	19-21R/min
Chute	Swing Angle	≥60°
	Angle control	Hydraulic
	Size	Long:176cm
		Short: 40cm
Loader	Weighing model	computer control
		Concrete Standard	C15.C20.C25 C30
	Accuracy	Cement	≤±2%/time
		Relative Error	≤±3%/time
		water	≤±1%/time
		Additive	≤±1%/time
		Admixture	≤±2%/time
Loader control	Hydraulic 4 way stick
Hydraulic oil tank	240L
Water tank	550L
Over size	750027003380mm

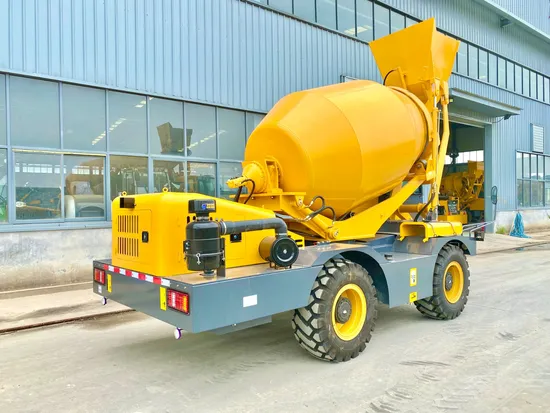

Product Image:
