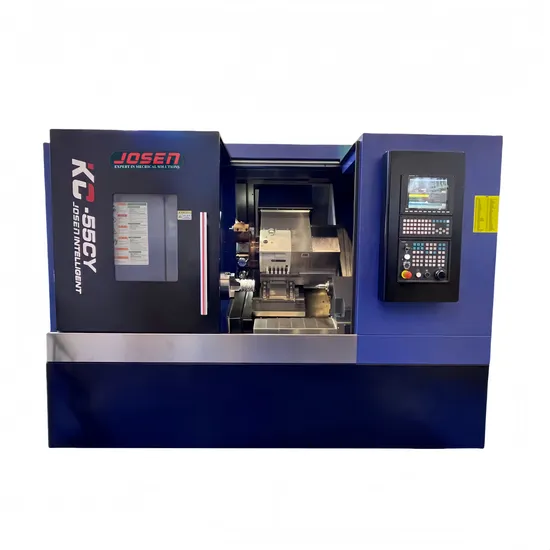

CNC Mill-Turn Machining Centers for The Perfect Balance of Precision and Speed

Product Description

Product Description

1.This model is suitable for communication electronics, automobile and locomotive parts production, and automated parts processing.

2.Combined with FEM analysis, the main components of the base, column and saddle all adopt unique high rigidity structure, which makes the internal force structure of the whole machine more optimized and ensures the rigidity and thermal variation stability of the whole machine.

3.Three axes linear precision rolling guide design, fast acceleration and deceleration response, effectively improve the machining efficiency and machining accuracy of the machine, even under heavy load is also excellent.

4.The front end of the spindle is equipped with a circular water jet to allow effective cooling of the cutting tool, while the internal air curtain with negative pressure extends the service life and ensures reliable use of the spindle for long time and high-speed operation.

5.The stable base and column with lightweight motion axis components effectively ensure the stability of the machine during high acceleration and deceleration movements.

Product Parameters

SL NO	Description	Unit	parameters
1. machine performance
1.1	Maximum swivel diameter of the bed	Mm/mm	630
1.2	Maximum machining diameter	Mm/mm	350
1.3	Maximum cutting length	Mm/mm	540
1.4	standard chuck sizes	Mm/mm	210
2. Control systems
2.1	FANUC		OITF PLUS
3. Spindle
3.1	Spindle type		mechanical spindles
3.2	spindle specifications		A2-6
3.3	Diameter of spindle through-hole	Mm/mm	66
3.4	Standard bar diameters	Mm/mm	52
3.5	Front bearing bore	Mm/mm	100
3.6	standard spindle speed	rpm	50-4000
3.7	Rated power of spindle motor (continuous operation rated) ,	Kw	11
3.8	Rated power of spindle motor (rated for 15-minute operation),	Kw	15
4. TURRET turret
4.1	Knife Center High	Mm/mm	BMT55
4.2	Number of workstations	No	12
4.3	Blade Diameter	mm	330
4.4	Maximum Boring Bar Diameter	mm	40
4.5	knife square dimensions	mm	25 x 25
4.6	Power Turret Power	Kw	4.5
5. Accuracy of X and Z axes
5.1	10. Z axis positioning accuracy	mm	± 0.005
5.2	10. Repeated positioning accuracy of Z-axis	mm	± 0.003

Company Profile
Certifications
Detailed Photos
Packaging & Shipping
FAQ
1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
We provide one year warranty, if any parts broken, we will send you a new one for free.

7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions

---
