Factory Price High Tech Double Arm Drop Impact Testing Machine

Product Description

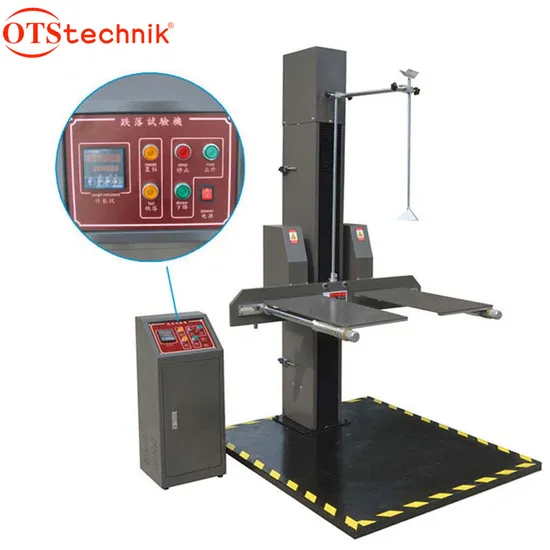

High Tech Double Arm Drop Impact Testing Equipment
Product Description
Package Impact Drop Testing Machineis used to measure the dropping impact incidence when the package in using, transportation and decorating. Labtone "1G+" project strictly ensure the accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this Drop Tester simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be tested.
Technical parameters:

Model	XB-OTS-220B
Display Method	Digital height indicator (optional)
Drop Height	400~1300 mm
Single-wing Area (W×L)	350×760 mm
Drop Panel Area (W×L)	1200×1400 mm
Specimen Max. Size (L*W*H)	1000*1000*800 mm
Specimen Max. Weight	640 Kg
Outside Dimension (L*W*H)	1400*1200*1940 mm
Control Box Size (L*W*H)	350*350*1100 mm
Weight	400 Kg
Power	1ph, AC220V/ 50Hz
Transmit Approach	Electric Transmission
Horsepower	1/2 HP
Design Criteria	ISO 2248, JIS Z0202-87, GB/T4857.5-92
**Design Criteria : ISTA-1A ISO 2248, JIS Z0202-87, GB/T4857.5-92

* NOTE: All kinds of fixture and elongation measurement device and other accessories can be equipped depending on client's demand, our company would give client the most appropriate advice.
Feature:
1. The spindle is used by precision grinding shaft lever, high precision, good stability
2. LCD screen displays multi-parameter.
3. Power failure safety design, keeping the original state when the power is failed.
4. Up and down lifting limitation setting
5. Adopt single arm supports test object.
6. Swing arm system is controlled by air pressure.
7. Free adjust pressure and speed up to 2G with object weight.
8. Test elctronic parts, finished products or angle surfae of the package container.
9. Decompression change design, low noise.
10. Best after sales service: One year free parts maintenance.
11. Meet international test standards.
12. Customization is available & welcomed.

1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of professional and biggest Manufacturer of Hot Sale Drying Oven For Laboratory,Hot Air Circulating Oven,High Temperature Oven .Every machine from our factory has a 14-month warranty after shipment. Generally,we offer 12 months for the FREE maintenance, while considering of sea transportation,we can extend 2 months for our customers.
If your machine doesn't work, you can send E-mail to us and we will try our best to find
the problem by email or skype video chat if neccesary. After confirmation of the problem,
we can send you new spare parts or provide on-site repair.
2. What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery
time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider
making a special arrangement for you.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized
machines according to your requirements. And we can also put your logo on the machine.
4. Do you have a branch company or service office in my country?
We have offices in the belowing:
The US Office: XIN BAO INSTRUMENT (US) CO.,LTD

Vietnam: XIN BAO INSTRUMENT INDUSTRY(VIETNAM)CO.,LTD

Address:248 no.1A Road,An Lac-Binh Tri Dong Residence,B Ward, Binh Tan Disrtict, HO Chi Minh City, Vietnam.
Singapore Dealer: Surveillance Inspection & Testing Services Pte Ltd

Address:No. 5 Jalan Kilang Barat #08-06 Petro Centre Singapore, 159349
Italy Dealer :AMSE SRL

Address: Strada della Cebrosa 86, 10156 Torino Italy
Suzhou Branch: XIN BAO INSTRUMENT SUZHOU BRANCH

Address: The First Garden B5 Buildings,Wuzhong Road 2588,Wuzhong District, Suzhou City Jiangsu Province
Nanjing Branch: XIN BAO INSTRUMENT NANJING BRANCH

Address: Room 539, Excellence Building, 688 Zhujiang Road, Xuanwu District, Nanjing City, Jiangsu Province
Taizhou Branch: XIN BAO INSTRUMENT TAIZHOU BRANCH

Address: No.68, Gaoyuan District, Jiaojiang District, Taizhou City, Zhejiang Province
Taiwan : TAIWAN XIN BAO INSTRUMENT CO.,LTD

Address: No. 551-1, 4, Central Road, Taichung City, Taiwan
5. How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our
officail website directly.
Most of our machine is shipped with a whole part, which means it is already installed, all you
need to do is to connect the power cable and start to use. And if possible, we can also install
your machine at site.

---
