Low Noise Pull Lift Winches Wire Rope Single Drum Hoist Winch

US$2,000.00-4,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
JTPB-1.2*1.0
Carrying Capacity
Middle-Level
Tonnage
2t to 10t
Reel Number
1
Feature
Explosion-Proof
Certification
CE
Standard
National Standards
Model
Jtpb-1.2*1.0
Drum Diameter
1200mm
Drum Width
1000mm
Max Wire Rope Tension
30kn
Wire Rope Max Length First Layer
170m
The Second Layer
344m
The Third Layer
516m
Wire Rope Max Dia.
20mm
Wire Rope Breaking Pull Sum
275
Average Lifting Speed
1.88-2.4m/S
Electric Motor Rotating Speed
967r/Min
Electric Motor Power
55-75kw
Transport Package
Wooden Case or Carton Case
Specification
4658*2680*1450mm
Trademark
China Coal
Origin
Shandong, China
Production Capacity
1000 Sets Per Month

Product Description

Introduction Of Low Noise Pull Lift Winches Wire Rope Single Drum Hoist WinchJTP series mining lifting winches are mainly used for mine floor shafts and inclined shaft lifting materials, personnel and equipment, can also be used for underground transportation and sinking bucket lifting.
It can be single drum winch and double drum winch.zmwm10 Parameters Of Low Noise Pull Lift Winches Wire Rope Single Drum Hoist Winch
Model Drum Max. Wire rope tension KN Wire Rope Max. Length m Wire rope Average lifting speed m/s Electric motor Dimension
mm		 Weight
kg
Diameter mm Width
mm		 The first layer The second layer The third layer Max Dia. mm Breaking pull sum Rotating speed r/min Power KW
JTPB-1.2*1.0 1200 1000 30 170 344 516 20 275 1.88-2.4 967 55-75 4658*2680*1450 10421
JTPB-1.2*1.2 1200 1200 30 203 412 620 20 275 1.57-2.4 967 55-75 4458*2680*1450 9940
JTPB-1.6*1.2 1600 1200 45 215 433 655 26 405 1.56-4 975 95-155 5224*2800*1925 15195
JTPB-1.6*1.5 1600 1500 45 269 542 819 26 405 1.56-4 975 95-155 5524*2800*1925 15678
JKB-2 X1.8P 2000 1800 62 332 670 1013 32 558 2.5 735 200 6410*3234*2600 25560
JKB-2 X1.5P 2000 1500 62 277 557 842 32 558 2.5 735 200 6160*3234*2600 24780
JKB-2.5X2P 2500 2000 83 373 755 1143 40 747 3 740 315 6700*3610*2600 36998
JKB-2.5X2.3P 2500 2300 83 429 867 1312 40 747 3 740 320 7000*3610*2600 39620

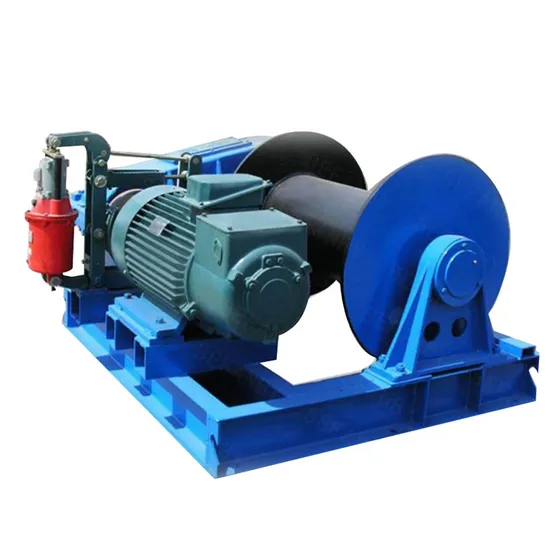

Photos Of Low Noise Pull Lift Winches Wire Rope Single Drum Hoist Winch
