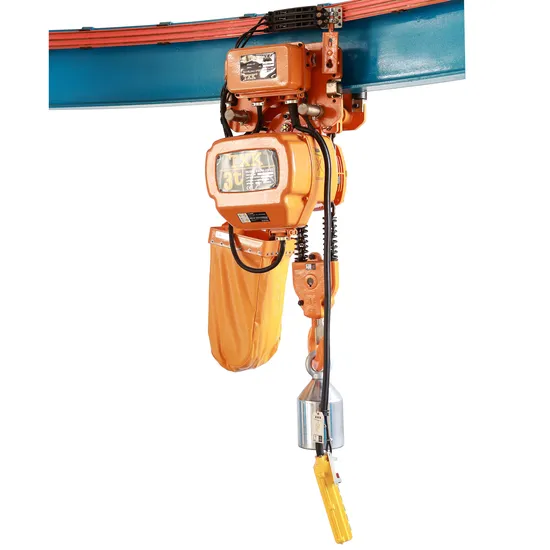

5t Electric Chain Hoist Upper Hook Fixed Type Lifting Machinery

Product Description

5t Electric Chain Hoist Upper Hook Fixed Type Lifting Machinery Product Description
Details of product:
1. Electric motor partial outer cover
They are made of high strength aluminum system through compression casting formation.
Features: Solid and light, Fast release heat, Continuous use, Enclosed structure. Can be used in the chemical plants, electroplating factories, and other places.
2. Side kind braking
This masterly structure ensure the hoist absolutly safety when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.
3. Gear
The gear made of alloy steel and through the heat treatment
4. Antiphase protector
Advatages: When power-supply wiring mistake, the control circuit is unable to move.
5. Hooks
They are made by hot forging and heat treatment.
6. Chain
It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M5 /FEM: 2M
Insulation grade: F
8. Protection class (hosit and push button): IP54
9. Power supply: 3 phase, 200-600V, 50Hz
10. Noise (single/ double speed): 81dB.
• Our product adopt the whole aluminum body, which improve the anti-corrosion degree and heat dissipation effects of the hoist, the product has beautiful appearance, small size and light body.
• The fan motor has unique radiating fin and fan cover to adapt to high frequency users as well as long time use.
• Our machine is equipped with safety dutch and up and down limit switch to prevent the accidents under the abnormal load. The safety clutch can stop the harms to the body and load chain under overload.
• The limit switch can prevent the damages to body and load chain under over-winding.
• The limit switch adopt the electric device, and high sensitivity, minimizing the hook gap distance, it constitutes the double security mechanism.

Product Parameters

Model	SSDHL
	05-02S
Capacity	5 t
Lifting Speed(m/min)	2.7
Motor Power(kw)	3.0
Rotation Speed(r/min)	1440
Insulation Grade	F
Power Supply	3P 220V-690V
Control Voltage	24V/36V/48V
No. of Chain	2
Spec. of Load Chain	Φ11.2

Company Profile
TXK was founded in 1997 and is a leading manufacturer of lifting and material handling equipments with almost 20 years experience. We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001:2008 certified company, our products are GS, CE certified, serving all spheres of industry in the world.
Our brand TXK is well sold in more than 50 countries worldwide and has earned an enviable reputation for high quality products. With our professional R&D team, we are able to provide customization services with the most professional quality and never stop meeting the highest standard of safety.
TXK will never stop being as an innovation manufacturer. We will continue to develop and extend our products range with high quality, safety standard and long life usage.
