CNC Milling Vmc CNC Vertical Machining Center Ysv-855

Product Description

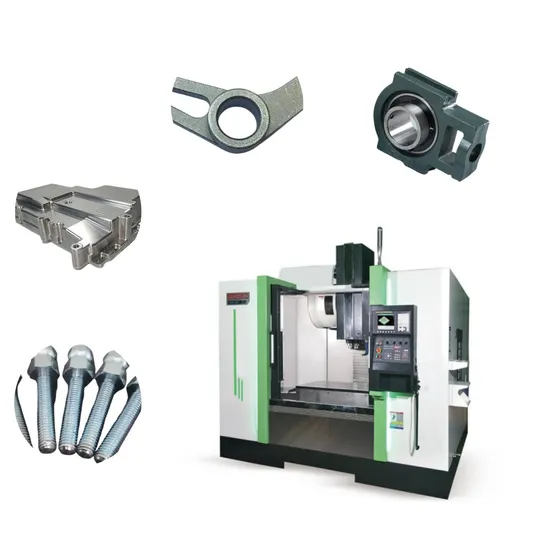

Vertical Machining Center YSV-855
The machine tool is equipped with name brand co5ponents in the industry, equipped with a large torque, high speed motor and a super rigid bed design.Taking into account high torque, high speed and high precision, it is suitable for processing all kinds of products and molds.

Model No.	YSV-855
Item No.
Travel
X/Y/Z axis	850/550/550 mm
Spindle Noseto Worktable	120-670 mm
Spindle Center to Column	610 mm
Three-Axis Guideway	Roller Linear Guideway
Worktable
Worktable Size (L*W)	1000x550mm
Maximum Table Load	800kg
T-Slot	5-18x90 mm
SPINDLE
Spindle taper	BBT-40
Spindle speed	10000 rpm
Spindle Drive Type	Belt
Feedrate
Rapid Traverse(XY/Z)	48/48/48 m/min
Cutting FeedrateXYIZ	10m/min
Tool changer
Automatic Tool Change	ARM Type
Type of Tool Shank	BT-40
Tocl Storage Capacty	24
Max.Tool Diameter(Adjacenit)	80 mm
Max. Tool Diameter(Empty	120 mm
Max. Tool Length	300 mm
Max. Tool Weight	7 kg
Tool Change Time	1.4 sec
Motor
Spindle Motor	7.5/11 kw
Three-Axs Servo Miolor	2.0/2.0/3.0kw
Accuracy
Accuracy	±0.005 mm
Repeatability	±0.003 mm
Power Required
Power Requirement	20 kva
Air PressureRequirement	6ˆ8 kg/cm2
Others
Extemnal Dimensions(LWH)	2530/2350/2559mm
Gross Weight	5.8t

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
