CAT6 X Network Cable Flame-Retardant Cross Skeleton CAT6 Separator Semi-Finished PE CAT6 Cable Center

Product Description

Product Description:

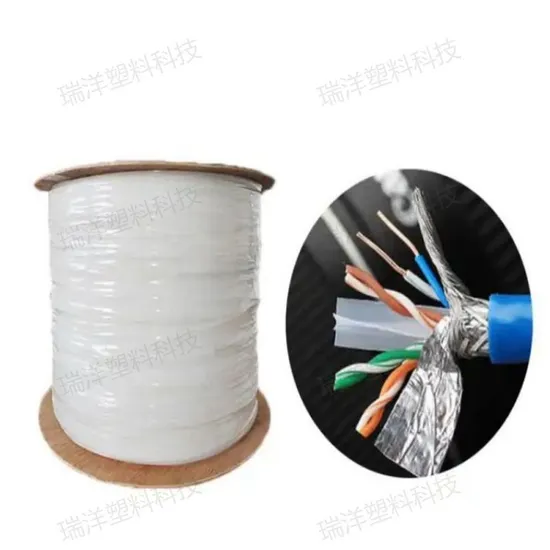

This Series of product is made of PE or LSZH. It is widely apply for the inner cross support isolation, shielding and flame retardant of CAT 6 Network wires,jumpers, etc.

Advantage:

High flame-retarant
Superior electrical performance
Low smoke zero halgon non-salivation
Good performances of slow ignition
Environmentally friendly
Comply with ROHS&REACH

Technical Properities:

Type	Item No	Specific gravity g/cm3	Main materials	Main features
General cable cross frame skeleton	RY-F5018	0.91-0.96	PE	-
General flame retardant cable cross frame skeleton	RY-F5019	0.92-0.96	PE	Use an alcohol lamp to burn the cross for 2 seconds and then remove, it will extinguish within 3 seconds. There are 2 to 3 drops falling down. It is widely used for General flame retardant grade Wires.
General low smoke halogen free flame retardant cable cross frame skeleton	RY-F5020	1.48 ±0.02	LSZH	Use an alcohol lamp to burn the cross and the cross is slow ignited slowly, It will begin to has drops falling down after 10 seconds, no black smoke. It is widely used for CM/60332-3- 22/CPR-E/D grade Wires.
Low smoke halogen free high flame retardant cable cross frame skeleton	RY-F5021	1.44 ± 0.02	LSZH	Low specific gravity of material, good electrical properties. Use alcohol lamp burn the cross for 10 seconds and the cross cannot be ignited, no dripping, no black smoke. It is generally used in the CPR- C/Bca grade standard, and can also be used for CMR grade Wires.
Low smoke halogen free high flame retardant cable cross frame skeleton	RY-F5022	1.55 ± 0.02	LSZH	Use an alcohol lamp to burn the cross for 30 seconds and the cross cannot be ignited, no dripping, no black smoke. It is Generally used for the CPR-Bca class /CMR class/60332 bundle burning Wires.
Foam cable cross frame skeleton	RY-F5023	0.93-0.96	PE foam	Often used for 6A data Wires
Other special shape cable cross frame skeleton	RY-F5024	0.91-0.96	PE	Special

Package, Transportation and Storage

Package: Wooden Drum/ Wood plate/ plywood, size: 600*600*330mm high, the outer layer is wrapped with clean and soft plastic film, there is no cross frame joint in each plate. The length is customized. The regular length is 6250 meters with under 4.6 specifications which can be made for 20 boxes of wires.
Transportation and Storage: It should not be exposed to the sun and rain during transportation and stored in a clean, cool, dry and ventilated warehouse and also should be handled and carried gently.

Company Profile

In order to adapt to the rapid development of contemporary communication technology and improve the speed and quality of data transmission, Suzhou Ruiyang Plastic Technology Co., Ltd was founded in 2014 in Linhu town Suzhou which is a place with a beautiful environment and convenient transportation . We are a professional manufacture with R & D, production, sales.
Our mainly products ar data cable cross skeleton, -skeleton, flame retardant and high flame retardant CPR-B /C grade, CMR grade skeleton, foam skeleton, shaped skeleton , CMP skeleton and related plastic products, plastic raw materials and plastic additives.
Our general PE cable skeleton annual capacity is about 500,000 kilometers, flame retardant and high flame retardant skeleton annual capacity is about 100,000 kilometers, plastic raw materials and products annual capacity is about 60,000 tons.We has a strong technical research and development team which can develop and design products to meet the different customers' requirements quickly and provide relevant plastic raw materials application technology timely.
Our company adheres to the development concept of "technological innovation, quality first, customer first". We continue to improve the cohesion of the team for the continuous improvement of quality and service. We always adhere to meet customer requirements as the starting point and destination of all work.We have became an irreplaceable partner from the perspective of customers.
At present, our main customers are Nexans, Batong Hersman, KePCO Group, Zhongli Group, Diyi Group, Guangdong Changbao, Jiangsu Hengtong, Zhejiang Yizhou and other well-known enterprises and listed companies at home and abroad.

Workshop

Test Equipments

Certificate& Test reports

FAQ

1. Are you trading company or Manufacturer ?
We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us.
2.What can you buy from us?
PVC Granules,LSZH granules,Polyethylene,HDPE Granules,LDPE Granules,Cross skeleton, Nucleating agent and other Plastic Granules.
3.Why choose us?
We are a professional manufacturer .We can offer very competitive prices and high quality for all our products.
4.Do you provide samples ? Is it free or extra ?
Yes, We can offer samples below 25kgs, but customers have to bear the shipping cost.
5.How long is your delivery time?
5-10 days. Only when the quantity exceeds 10000kgs delivery time will be agreed by negotiations.
6.Do you accept customization?
Yes,All products can be customized for different requirements.
7.What are your payment terms ?
We'd like to use T/T as the terms of payment. L/C terms can be communicated.

---
