Plastic Pet Preform and Bottle Cap Mould Product

Product Description

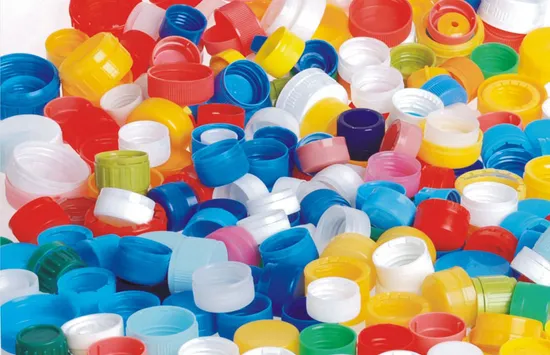

Plastic PET Preform and Bottle Cap Mould Product
Injection molding systems are available from 88 to 1280 tonnes (880 to 12800 kN) and up to 96 cavities.
Injection systems offer:
1. Faster cycles
2. Reduced energy consumption
3. Smaller footprint
4. Improved repeatability
5. Rapid set-up
This machine can manufacture Plastic PET Preform and Bottle Cap Mould Product.
Plastic PET Preform and Bottle Cap Mould Product apply to Plastic injection molding machine,equipment information.

INJECTION MOLDING MACHINE	ZQ88-M6			ZQ128-M6			ZQ168-M6
International size rating	275/88			416/128			619/168
INJECTION	A	B	C	A	B	C	A	B	C
Shot volume cm3	129	163	201	215	263	316	291	349	463
Shot weight g	121	153	189	196	239	287	273	328	435
(PS) oz	4.2	5.4	6.6	6.9	8.4	10.1	9.6	11.5	15.2
Screw diameter mm	32	36	40	38	42	46	42	46	53
Injection pressure Mpa	214	169	137	193	158	132	190	169	120
Screw L: Dratio -----	23:1	20:1	18:1	22:1	20:1	18:1	23:1	20:1	18:1
Screw stroke mm	160			190			200
Screw speed (stepless) r/min	0-215			0-220			0-234
CLAMPING SYSTEM	ZQ88-M6			ZQ128-M6			ZQ168-M6
Clamping force KN	880			1280			1680
Opening stroke mm	320			380			430
Platen size mm×mm	550×550			620×620			700×700
Space between tie bars mm×mm	360×360			410×410			460×460
Max.daylight mm	680			810			930
Mold thickness (Min-Max) mm	150-360			150-430			180-500
Hydraulic ejection stroke mm	100			125			140
Hydraulic ejection force KN	31			42			50
POWER UNIT	ZQ88-M6			ZQ128-M6			ZQ168-M6
Hydraulic system pressure Mpa	16			17.5			17.5
Pump motor KW	7.5			11			15
Heating capticy KW	6.5			8.9			9.8
Number of temp control zones	3+(nozzle)			3+(nozzle)			3+(nozzle)
GENERAL	ZQ88-M6			ZQ128-M6			ZQ168-M6
Dry-cycle time Sec	1.1			1.3			1.8
Oil tank capacity L	200			220			300
Machine dimensions(LxWxH) M x M x M	4.42x1.07x1.72			4.86x1.09x1.75			5.04x1.17x1.97
Machine weight Kg	3500			4000			5000

Note: The specifications are subject to change without notice for the further improvement.

---
