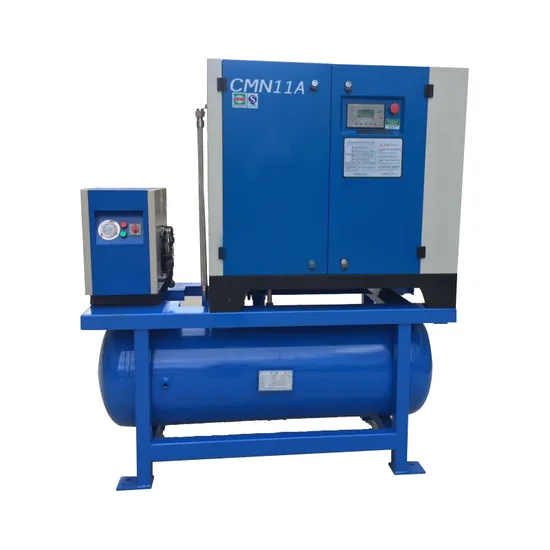

Silent Pet Bottle Blowing Oil-Free Screw Scroll Air Compressor 20-40bar for Laster Cutting Detal Textile Pharmacy Chemical Industry Water Cooling Lubrication

Product Description

Silent Pet Bottle Blowing Oil-Free Screw Scroll Air Compressor 20-40bar for Laster Cutting Detal Textile Pharmacy Chemical Industry Water Cooling Lubrication
Product Description
Main uses and guarantees:
Energy saving: energy saving more than 15% compared with dry oil-free compressor.
Environment protection: no using any lubricate oil to avoid environment pollution.
Reliability: absolutely guarantee oil-free.
Because the purified water takes part into the compressing process to seal, cool and lubricate, it increases efficiency. With the same motor power, comparing with dry oil-free air compress, there is 15% more air production of oil-free screw air compressor of water lubrication, it reduces the energy consumption greatly. The consumption material of oil-free screw air compressor is only water, air filter and water filter, the maintenance cost is very low.
100% oil-free compressed air, 100% purified compressed air, 100% no oil pollution risk.
In the process of food and drink industry, medical industry, packing industry, electronic manufacture, painting industry, powder coating industry and textile manufacturing, it must avoid any risk of oil pollution, otherwise it would cause serious consequences such as manufacture damages and stop, brand and credit losing. CMN oil-free screw air compressor takes water for lubrication, there is not any lubricate oil in the air end, and at the meantime, because the purified water clean the air, the compressor air is absolutely clear and not any pollution.
Guarantee: High precision, high wear resistance, low noise, smooth and steady, high strength
Product Parameters
Model Working Pressure(Mpa) FAD(m³/min) Power(kW) Noise(dB(A)) Weight(kg) Dimension(L*W*H mm)

CM75G	2.0~4.0	6.3	75	70	2100	2750*1250*1480
CM75GPV	2.0~4.0	2.5~6.3	37	70	2250	2000*1900*1480
CM90G	2.0~4.0	8.2	90	72	2580	3000*1350*1540
CM110GPV	2.0~4.0	3.3~8.2	55	72	2450	2500*2000*1550
CM100G	2.0~4.0	10.2	110	72	2630	3000*1350*1540
CM130GPV	2.0~3.0	5.4~13.5	55/75	75	3000	2500*2000*1550
CM150GPV	2.0~4.0	5.4~13.5	75	75	3100	2500*2000*1550
CM200GPV	2.0~4.0	7.1~17.8	90/110	75	3850	2760*2250*1670
CM242GPV	2.0~4.0	9.6~24.0	110/132	75	3950	2760*2250*1670
CM320GPV	2.0~4.0	12.6~31.5	160	85	5100	3800*2100*2250

Our OEM/ODM company provides you what best matches your needs Our product can be adapted. Please give us the required model name so we can provide you the most accurate quotation.
This chart if for reference, if you need different features, provide us all relevant details for your project and we will be glad to help you finding the product matching your need at the best quality with the lowest price.
Please note the price and the MOQ may vary regarding the product you chose: do not hesitate to contact us to know more! Main Features 1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Oil-free VS Piston Compressor

	100% Oil-free Screw Air Compressor	Piston Air Compressor
Oil content	The compressed air has an oil content of 0PPM and has passed the third-party international authoritative organization TUV class 0 oil-free certification in Germany	When the oil scraper ring and packing box are worn out, lubricating oil will enter the cylinder in a gaseous or liquid form, causing the discharged compressed air to contain oil
Operational security	When shutting down: the pressure is relieved by the vent valve, and there is no pressure in the compression chamber. When restarting, it can be started directly	When restarting, it is necessary to use low-pressure air to open the air valve for unloading, which poses a risk of equipment failure due to improper operation
Vibration	Good power balance, smooth operation, no need to fix the foundation during the operation of the unit, and the coin does not tilt	Unbalanced force, large vibration, requiring fixed foundation or shock absorption device
Oil free safety	100% clean and oil-free compressed air, 100% avoiding the risk of oil pollution	There is a risk of lubricating oil leaking into the compression chamber and spraying a large amount of oil after the failure of the oil scraper ring and the wear of the packing box create gaps
Water content	Isothermal compression, the compression chamber temperature is generally only around 45 ºC, and the water vapor mixture is separated by a patented water vapor separation drum, resulting in low water content in the compressed air	The working temperature of the compression chamber of the piston machine is around 180 ºC, and the exhaust temperature after passing through the aftercooler is around 85 ºC. The compressed air has a high water content
Fire safety	The operating temperature is low, around 45 ºC, so there is no need to worry about equipment high-temperature self ignition or scalding accidents	The temperature of the compression chamber can reach around 180 ºC, which poses a risk of high-temperature spontaneous combustion and personal burns.
Temperature	The whole machine is cooled by water, and as long as the pressure and flow rate of the cooling water are ensured, the machine can operate stably at around 45 ºC for a long time	The temperature inside the cylinder is around 180 ºC, which is prone to high temperature alarm and shutdown
Efficiency	The direct connection between the host and motor has high transmission efficiency and low power loss, with a compression efficiency of over 95%	The reciprocating plug type is generally a three-stage or four stage compression, with a complex structure and pipelines, high pressure loss, high specific power, and high power consumption
Particle impurities	Water has a cleaning effect on the air. Impurities such as dust particles sucked in with the air remain in the water and are discharged from the machine body through an automatic drainage and discharge valve	The dust particles sucked in with the air and impurities such as dust particles that fall off from the friction of moving parts are compressed together
Corrosive gas content	The corrosive gases in the air are cleaned with pure water, left in the water, and discharged from the machine body through an automatic drainage valve	The corrosive gases in the air are directly compressed and enter the machine, causing corrosion to the cast iron, ductile iron cylinders, and components of the piston compressor
Maintenance costs	Low, taking the screw compressor with an installed power of 150kw as an example, the annual maintenance cost does not exceed ¥20000	Taking a piston engine with an installed power of 150kw as an example, the annual maintenance cost is around ¥100000
Maintenance consumables and accessories	Water filter cartridge, air filter	Oil coarse filter, oil fine filter, air valve, piston ring, support ring, oil scraper ring, packing, bearing shell, etc
Hygiene and cleanliness	All components in contact with water and air are made of 304 or 316 food grade stainless steel, ensuring food grade safety, cleanliness, and hygiene.	Most components in contact with water and air are made of ductile iron, cast iron, aluminum, or carbon steel, which are prone to corrosion, rust, and pollution of compressed air
Operating energy consumption and electricity bills	The screw machine is a high-speed and light load machine, which saves about 20% energy compared to the piston machine when all new machines are used	Low speed heavy load, high power consumption
Noise	Low noise, taking the 242kw model as an example, the noise is around 80 decibels	High noise, taking the 250kw model as an example, the noise is about 110 decibels

Company Profile In the early stage, we carried out technical cooperation with Simeon of France on high-end oil-free compressors and gradually established a complete set of innovation and R&D systems in China.
In 2006, our company successfully developed the Simeon water lubricated oil-free screw air compressor with independent patent technology, which was listed as the national key new product trial production plan, becoming the first enterprise in China to successfully develop the water lubricated oil-free screw air compressor, and the first enterprise in China to master the manufacturing technology of the water lubricated screw oil-free compressor.
Due to the low exhaust temperature of the water lubricated oil-free machine and the corrosion resistance of the stainless steel host, it is very suitable to compress flammable, explosive and corrosive gases. On the basis of the water lubricated oil-free machine, our company has successfully developed biogas compressor, coal seam gas compressor, and special gas compressor for nitrogen, carbon dioxide, oxygen, formaldehyde, hydrogen and other processes. It also fills the international gap that there is no screw compressor for process gas compressor.
With quality as the basic requirement and energy conservation and environmental protection as the guiding ideology, Simeon will further develop special compressors with high-tech content. After years of development, the Simeon screw air compressor manufactured by Jieneng Company has been widely used in medicine, food, petrochemical, metallurgy, chemical industry, machinery, electronics, hydropower, national defense and other industries and fields, and its products are widely distributed all over the world and are welcomed by users.
