Welcome to visit

SAE 100r7/En855 R7 Standard Hot Sell in Russia Market GOST Hose GOST 5398-76 Suction Discharge Hose Hydraulic Hose SAE100 R1 R2 R3 R5 R6 R7 R8

US$0.12 50 Meters (MOQ)

Basic Info.

Model NO.
SAE 100R7/EN855 R7 STANDARD
Color
Blue/Red/Yellow
Working Pressure
21
Burst Pressure
76
Transport Package
Pallet/Carton/Plastic Film
Specification
1/8"-1′′
Trademark
HERO POWER/RUNNINGFLEX/SUPER WELL/EVERFLY
Origin
China
HS Code
40093100
Production Capacity
660, 000 Meters Per Month

Product Description

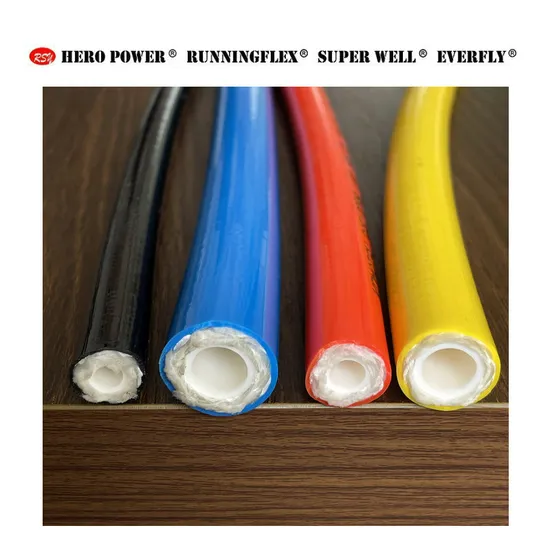

Construction:Tube: Oil-resistant synthetic thermoplastic core(Nylon)Reinforcement: One braid of high tensile synthetic fiberCover: Abrasion-resistant polyurethaneTemperature: -40°C to +100°CApplication: Automobile,construction machinery,lathe,agriculture,Machine,mining,Spurting the oil paint,navigation & spaceflight, cooling and other hydraulic control system.
Size
 SAE
 Inside
Ø mm
 Outside
Ø mm
 Working
Pressure
 Burst
Pressure
 Bend
Radius
 Length
mm
 Dash
 Inch
 Min
 Max
 Mpa
 Mpa
 mm
 m
3
 -2
 1/8"
 3.2
 8.5
 17.2
 68.8
 13
 100
5
 -3
 3/16"
 4.8
 10.8
 21.0
 84.0
 33
 100
6
 -4
 1/4"
 6.4
 13.0
 19.0
 76.0
 38
 100
8
 -5
 5/16"
 8.0
 15.1
 17.5
 70.0
 46
 100
10
 -6
 3/8"
 9.5
 17.0
 15.7
 62.8
 51
 100
13
 -8
 1/2"
 12.7
 20.7
 14.0
 56.0
 76
 100
16
 -10
 5/8"
 16.0
 22.0
 11.0
 44.0
 110
 100
19
 -12
 3/4"
 19.0
 26.0
 8.7
 34.8
 127
 50
25
 -16
 1"
 25.0
 32.0
 7.0
 28.0
 203
 50
