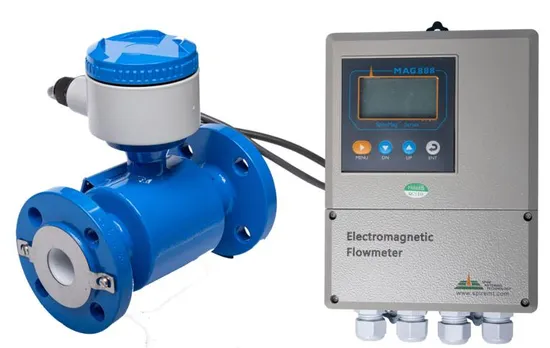

Rubber PTFE Inner Material Electromagnetic Flowmeter for Pure Water

Product Description

Features:
1.Flow rate range:0m/s-15m/s
2.Accuracy:0.3%,0.5%,1%, optional
3.Metric system
4.Standard Pressures:1.0MPa 1.6MPa 2.5MPa
5.Medium conductivity:≥ 20μs/c
6.Temperature:0°C ~100°C
7.Singal output:Pulse Output/Frequency Output
8.Iner Material:Rubber, PTFE, 316LSS,Hastelloy B,Hastelloy C,Ti,Ta
9.Power supply: battery power, external power supply(AC220V)
10.Protection Rating:IP65 or IP68
11.Commnucation output: Modbus 4-2mA BACnet/MSTP
12.Protectiona level:IP65
13.Pipe diameter:DN15-DN600

Flow rates (m/s) Flow (m3/h) DN(mm)	0.01	1	3	4	5	15
15	0.006	0.64	1.9	2.5	3.2	9.5
20	0.011	1.13	3.4	4.5	5.7	17.0
25	0.018	1.77	5.3	7.1	8.8	26.5
40	0.45	4.52	13.6	18.1	22.6	67.9
50	0.07	7.07	21.2	28.3	35.3	106.0
65	0.12	11.95	35.8	47.8	59.7	179.2
80	0.18	18.1	54.3	72.4	90.5	271.4
100	0.28	28.27	84.8	113.1	141.4	424.1
150	0.63	63.61	190.9	254.5	318.1	954.3
200	1.13	113.1	339.3	452.4	565.5	1696.5
250	1.76	176.7	530.1	706.9	883.6	2650.7
300	2.54	254.4	763.4	1017.9	1272.3	3817.0
350	3.46	346.3	1039.1	1385.4	1731.8	5195.4
400	4.52	452.3	1357.2	1809.6	2261.9	6785.8
450	5.72	572.5	1717.7	2290.2	2862.8	8588.3
500	7.06	706.8	2120.6	2827.4	3534.3	10602.9
600	10.17	1017.8	3053.6	4071.5	5089.4	15268.1

When select the right Electromagnetic Flow Meter, questions to answer:
1.What's the fluid?
2.What's flow range? and pipe size?
3.What's working pressure?
4.What's working temperature?
5.Do you need display or not?
We are Chengdu Shenitech Instruments Co., Ltd., located in Chengdu, China, which is a Sichuan Provincial Enterprise Technology Center and Demonstration Base for attracting talents and intelligence with features of specialization, refinement, novelty. We are a high-tech enterprise specializing in R&D, design, production and sales of ultrasonic flow meters, water meters, gas meters, heat meters, wireless meter reading systems, internet collection systems, intelligent water management platforms and leakage monitoring platforms for urban pipeline networks. Shenitech technical team has been engaged in ultrasonic flow measurement technology research for more than 20 years. We are proud to be the leading position in the field of ultrasonic flow measurement technology. Currently, we have more than 100 pieces of core patented technology in the United States and China. We are proud to be the supplier of many big international companies. High-end products have been sold to more than 40 countries and regions around the world, including India, Saudi Arabia, Austria, the United States, Italy, Israel, Canada and so on. Major customers total more than 4000, including GE, Siemens, NASA, Honeywell, Johnson Controls, Sony 1. Does your company name, address, product/business scope match the actual?
Yes, all details are based on the actual situation. Welcome to visit us on site or online.
2. What are the main products of your company?
Ultrasonic Water meter 280W-R series, 280W-D1 and -CI series; Heat Meter 280T series; Portable and wall-mounted flow meters EF40, TP10, EF10, RH40; Electromagnetic Flowmeter MAG888; Concentrator.
3. Are you a trading company, a manufacturer or a combination?
We are a combined R&D, manufacturing, factory and trading company with factories in Chengdu, China, Guizhou, Massachusetts, USA and Saudi Arabia, which means that we both produce and sell our products.
4. What communication output methods does the product have?
RS485/Mbus/NB-IoT/LoRaWan/Wmbus/BACnet/Pulse/4G/ TTL/Infrared
5. How can we buy products at a better price?
The price varies according to the product model, quantity and size. Generally, we will give preferential price based on larger quantity, larger size and long-term relationship.
6. What payment methods do you support?
T/T is preferred.
7. What are your success cases?
We have many successful cases at China and abroad.
The following are some representative cases:
*An Austrian company purchased 8,000 DN15 ultrasonic water meters from Shenitech in 2009;
*Spire has signed a 10-year strategic cooperation agreement with AEC, Saudi Arabia's largest electronics manufacturer, and is the exclusive supplier of AEC's ultrasonic water meter modules;
*Shenitech has provided 300,000 ultrasonic water meter modules to Saudi Arabia; the Royal Clock Tower in Mecca has used Shenitech's 5,000 ultrasonic water meters and heat meters, 200 collectors and a 3D visual meter reading management system to realize water, electricity, heat meters in one for automatic meter reading, and connected to Honeywell's automated building management system;
*Dubai Electricity & Water Authority (DEWA) purchased 12,000 ultrasonic water meters from Shenitech in 2019.
8 Is your flow meter safe?
Yes, our products are safe and certified by international standards. We have been selling our products for more than 20 years and more than 40 countries have proved the long-term safety of our products.
9. Do your products have certificates?
Yes, we have CE, MID, NSF/ANSI, ISO9001:2015, OIML certificates in accordance with European, American and international market standards.

---
