US$15.00-45.00
|
150 kg
(MOQ)
|
Basic Info.
Technique
Seamless,Hot Extruded,Welded,Cold Rolled
Outside Diameter
3-210 mm
Material Grade
Gr1,Gr2,Gr3,Gr5,Gr7,Gr9.Gr11.Gr12
Standard
ASTM B338,ASTM B337, ASTM B381,ASTM B861,ASTM B862
Surface
Acid Surface or Polishing
Transport Package
Wooden Box
Production Capacity
500 Tons/Month

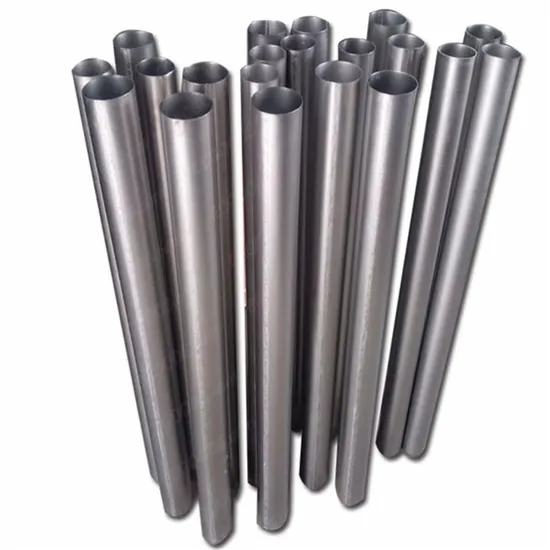

Product Description
Titanium grade 6 mechanical properties & hardness is that titanium grade 6 has a Rockwell Hardness C of 41. It has a Brinell
Hardness of 379. The Vickers Hardness of titanium grade 6 is 396. The Knoop Hardness of titanium grade 6 is 414. The Elongation
at Break of titanium grade 6 is 10%. The Creep Strength of titanium grade 6 @Temperature 455 °C is 210 MPa .
The Creep Strength of titanium grade 6 Temperature 851 °F is 43500 psi (For a Time >=100 hour).
With regards to titanium grade 6 tensile strength & thermal conductivity, the Ultimate Tensile Strength of titanium grade 6 is 1170 MPa
(170000 psi). The Yield Tensile Strength of titanium grade 6 is 1100 MPa (160000 psi). The Thermal Conductivity of titanium grade 6
is 6.70 W/m-K (46.5 BTU-in/hr-ft²-°F). The International Specifications of titanium grade 6 are W. NR. 3.7114, W. NR. 3.7115.
Chemical Composition
Grade | N | C | H | Fe | O | Al | V | Pb | Mo | Ni | Ti |
Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Bal |
Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Bal |
Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Bal |
Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | Bal |
Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2-0.4 | 0.6-0.9 | Bal |
Tensile Requirements
Grade | Elongation(%) | Tensile Strength (Min) | Yield Strength (Min) |
ksi | Mpa | ksi | Mpa |
Gr1 | 24 | 35 | 240 | 20 | 138 |
Gr2 | 20 | 50 | 345 | 40 | 275 |
Gr3 | 18 | 65 | 450 | 55 | 380 |
Gr4 | 15 | 80 | 550 | 70 | 483 |
Gr5 | 10 | 130 | 895 | 120 | 828 |
Gr7 | 20 | 50 | 345 | 40 | 275 |
Gr9 | 15 | 90 | 620 | 70 | 438 |
Gr12 | 18 | 70 | 438 | 50 | 345 |
Applications
★Aerospace industry
★Chemical and marine applications
★Electroplating industry
★Medical industry
★Nuclear industry
★Hydro-carbon processing
★Airframe skin
★Desalination
★Chlorate manufacturing
Production Process
>>
