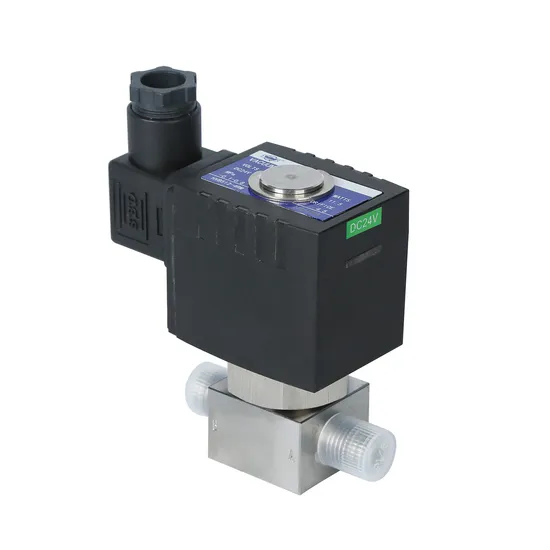

New Lightweight and Compact Solenoid Valve Hvb Series and Xsa High Vacuum Valve

Product Description

Product Description
[High vacuum]
Vacuum leakage rate 1.0 x 10^-9 Pa/s or less, compatible with high vacuum systems.
[Lightweight and compact]
Lightweight and compact thanks to the thin coil.
[Variation]
Optimum selection is possible from five coil sizes and multiple orifice sizes.
[Wide range of connections]
VCR compatible fitting (JXR fitting), double barbed fitting integrated also available, vacuum container, vacuum retention of piping.

No.	Part name	Material		No.	Part name	Material
1	Coil assembly	(Molded coil)		4	O-ring	FKM	Fluoro rubber
2	Core assembly	SUS405, SUS316L	Stainless steel	5	Spring	SUS304	Stainless steel
3	Plunger assembly	SUS405, FKM	Stainless steel, fluoro rubber	6	Body	SUS304 or SCS13	Stainless steel

Specification:

Item	HVB512
Working fluid	Air/vacuum/inert gas (*1)
Proof pressure MPa	5.0 (≈730 psi, 50 bar)
Fluid temperature °C	5 (41°F) to 55 (131°F)
Ambient temperature °C	0 (32°F) to 55 (131°F) (no freezing)
Thermal class	Class 130 (B)
Voltage fluctuation range	Rated voltage ±10%
Atmosphere	No explosive or corrosive atmospheres
Valve structure	Direct acting poppet structure
Valve seat leakage Pa m3/sHe	1.0 x 10-9 or less (*2)
External leakage Pa m3/sHe	1.0 x 10-9 or less
Mounting orientation	Unrestricted
Durability	2 million times

Individual specifications
Outlook & Dimension:

Model No.	A	B	C	D	E	F	G	H	J	K	L
HVB212-4RM	51	21	25	9.5	48	58	15.5	19.5	22	15	M4 x 0.7 depth 6
HVB312-4RM	64	30	25	9.5	53.5	64.5	18.5	22.5	28	18	M5 x 0.8 depth 8
HVB412-4RM	64	34	32	11.6	66	79.5	22.5	26	34	18	M5 x 0.8 depth 8
HVB412-6RM	75	34	32	11.6	66	79.5	22.5	26	34	18	M5 x 0.8 depth 8
HVB512-4RM	64	34	32	11.6	71.5	86.5	26	29.5	40	18	M5 x 0.8 depth 8
HVB512-6RM	75	34	32	11.6	71.5	86.5	26	29.5	40	18	M5 x 0.8 depth 8
