Features:
1. With independent software design, automatic cloth cutting machine can be compatible with any CAD format, directly read the layout of the customer's layout.
2. High Production and Work Efficiency: The automatic cloth cutting machine offers fast speed and high precision, reducing the need for rework and saving time in subsequent processes.
3. High Precision and Safety: Manual cutting is influenced by individual performance, leading to unstable quality with a deviation of about ±1 cm. In contrast, the automatic fabric cutting machine achieves a precision of ±1 mm, with negligible impact on garment sewing.
4. Simple and Efficient Operation: The industrial fabric cutting machine is easy to use and increases efficiency by 10% compared to manual cutting (for knitted fabrics). It enables quick response to delivery deadlines while reducing company management costs.
5. Equipped with an Intelligent Knife Sharpening System: It automatically sets sharpening intervals based on usage time or cutting length, ensuring the blade remains sharp and improving cutting precision.
6. Low Cost of Consumables and Spare Parts: Consumables like overlay film and perforated kraft paper, as well as wear parts such as brushes (with a lifespan of 2-3 years), are cost-effective and easy to maintain. Cutting costs are approximately $0.17 per meter.
7. Improved Production Environment:
The industrial fabric cutting machine reduces dust and noise, delivers neatly cut pieces, optimizes the production environment, and enhances the company’s image.
Technical Data:
Product name

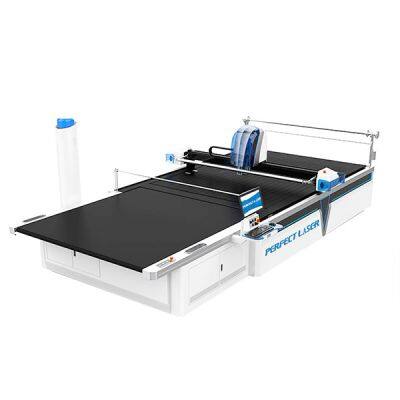

| Automatic Multi-layer Fabric Cutting Machine
|
Model
| PE-B2025II
|
Max Cutting Height
| 6cm/9cm(after vac-sorb)
|
Cutting Window
| Length(no limitation)
|
Width(no wider than the fabric width)
|
Working Width(Y)
| 1700mm/2000mm/2200mm
|
Normal Working Length(X)
| 2500mm/3300mm optional
|
Electricity
| Three phase 380V,50-60Hz
|
Power Consumption
| 18KW max
|
CAD&CAM Connect Way
| Ethernet communication/USB Flash memory
|
Max Speed of Blade Working
| 6000RPM
|
Compressed Air
| 0.55Mpa 160L/min
|
Cutting Speed
| 6000mm/min
|
Acceleration
| 0.8-1g(N/Kg)
|
Noise Level
| ＜75dbA
|
>>
