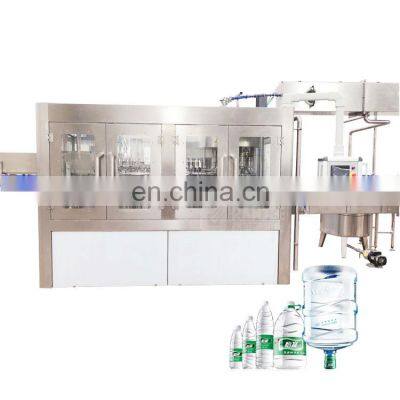

Automatic 3 in 1 monoblock drinking water filling machine / bottling line

Product Description

Product Description
Product Description
Automatic 3 in 1 monoblock drinking water filling machine / bottling line
Brief introduction for water filling production line:
1. PET preform and pe caps injection molding machine
2. (Making bottle) Full automatic bottle blow machine or Semi automatic bottle blow machine
3. (Water Purification System ) RO water purification machine / UF mineral water filtration machine.
4. (Filling water into bottle) 3 in 1 bottle washing filling and capping machine
5. (Labeling bottle water) Shrink sleeve labeling machine or Sticker labeling machine or OPP labeling machine .
6. (Printing the date on the bottle water) Laser printer or Inkjet printer.
7. (Package the bottle water) Full automatic shrink wrapping packing machine or Semi automatic shrink wrapping packing machine / Carton box packing machine.

Automatic water filling machine production line packaging specifications						Material: SS304/316
Bottle material	Shape		Filling volume	Filling level(mm)		Neck type
PET/Glass bottle	Square/round/flat bottle		100-2250ml	According request±1mm		As required
Adjustable specifications	Bottle size: bottle diameter≤110mm, bottle height≤340mm
	If using square bottles, then bottle separating system will be added
Filling temperature	2℃-40℃ level control: float ball and pneumatic butterfly valve.
Bottle labeling type		Packing system Min, Spec.				Palletizing system
Manual/ automatic Hot melt roll-fed PVC shrink label Full label/half label		Film shrink packing Robert packing Carton packing		23 24 34 35 44 45 4*6 6-30bags/min		Low position Gantry palletizer Robot palletizer
User Ambient Conditions		Temperature: 2-40℃, Humidity: no dew
Bottle feed-in		Conveyor with screw for glass bottle			Adopt air-conveyor for PET bottleWashing filling capping part

What Grandee Machinery Can Do For You ?
Detailed Images24

Washing Part:The bottle enters into the rinsing part of three-in-one machine through air conveyor. The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again
	Filling valve: Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.
Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.
	RO System Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr. This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised. We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
Blowing Machine with different options: 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities. 2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle.
	Full automatic sleeve labeling machine Capacity: 100-350bottles/min can be chosed Label material: PVC PET OPS,etc Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
Linear PE film shrink packing machine Film material: PE Shrink membrane thickness: 70~100um Capacity: 8-35 packages/ min can be chosen Conveyor belt max width: 600mm Height is: 1000~1100mm

Company information
Workshop detail
Our team
Our exhibition
FAQ
Q1: How to find suitable water filling machine or complete water production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
Q2: How to start a water factory business ? What's my budget?
A2: First confirm the source water, send the water samples to your local department and get an water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 10000liters/hr,etc.
Q3: How to confirm the bottle shapes that is very attractive for your customer ?
A3: Confirm the plastic bottle size is 355ml, 500ml, 1000ml,1500ml or 2000ml, then our engineer can design the bottle shapes for you.
Q4: Which kinds of machines included in one complete water production line?
A4: PE Resin, injection molding machine, automatic or semi auto plastic blowing molding machine, water filling machine, sleeve shrink labeling machine or self adhesive labeling machine or OPP labeling machine or rotary labeling machine, semiautomatic or full automatic L type shrink packing machine, high speed shrink packing machine, laser or ink printer, palletizer, pallet wrapping machine.
Q5: Are you a trading company or a manufacturer?
A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q6: Do you have technical support after we purchased your machines?
A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
