Cycjet Lf30f Online CO2 Engraving Machine for Glass Bottles

Product Description

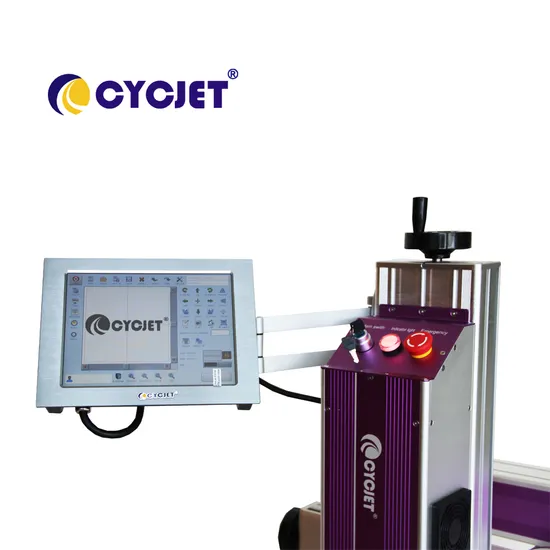

Product Picture:
Components of Machine:
Applications:
This type laser marking machine was designed for all kind of bottles, such as glass, plastic bottle. Also suitable for other materials, paper, rubber etc. It could print code and information on the glass bottle when the conveyor belt running. The code can not remove and erase. The most important is laser marking machine do not need any consuner materials, less mechanical failure. It save the factory lot of production cost in future.
Also suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.
Advantage:
1, Perfect design software, easy to learn and operation
2, Less Mechanical Faliure
3, Operation Status: Fly and Standstill
4, The code can not move or erase it
5, No consumer goods, less production cost
Terms Of Payment:
T/T, LC
After-sale Service:
1, Warranty Valid: 12 Month
2, Online or Spot Training
Details and Specifications:

PERFORMANCE		Frame Material	ALUM.
		Laser Device	CO2 Laser Device
		Power	≥30W
		Laser Wavelength	10.64um
		Galvanometer deflection	High Precision dual dimensional scanning system
		Marking speed	≤12000mm/s
		Master Control	Highly integrated board with 10 inch Color Touch screen
		Operating System	LINUX based with High Speed Pipe Marking Software
		Cooling	3 groups Cooling Fans
Marking Specifications		Focus Distance	Focus 140mm
		Marking line type	Dot matrix, bold, vector all in one(both dot matrix and vector)
		Minimum line width	0.04mm
		Repeatability accurate positioning	0.01mm
		Marking Area	Standard 110mm×110mm(Customized available)
		Marking height	Standard Character height 110mm
		Marking Length	Unlimited
		Positioning mode	Red light positioning and focusing
		Number of characters	Any line(multi-line) within marking range
		Line Speed	Standard 0~120m/min (depends on material &text)
Support type		Typeface	Chinese , English, available to customized
		Marking	Number, logo, image, letter, serials number, system date & time,etc...
		File format	CNF/PLT
		Bar code	CODE39,CODE128,CODE126,QR,Z-Code
Others		Power Supply	100-220V/50-60HZ
		Power Consumption	600W
		Net Weight	68kg
		Oversize	150cm X 55cm X 90cm
Environmental Requirement			0ºC-45ºC; humidity≤95%; non-condensing; no shaking
The Quality Standard of CYCJET CO2 Laser Marking Machine
GB 7247-87	Radiation safety of laser products, requirements for equipment classification and user's Guide
GB10320-88	Electrical safety of laser equipment and facilities
ISO 9000-3	International software standards
GB/T12123-89	Sales packaging process
IEC 536	Classification of electrical and electronic equipment for protection against electric shock

---
