Good Quality Red Clay Soil Interlocking Paver Block Machine for Sale

Product Description

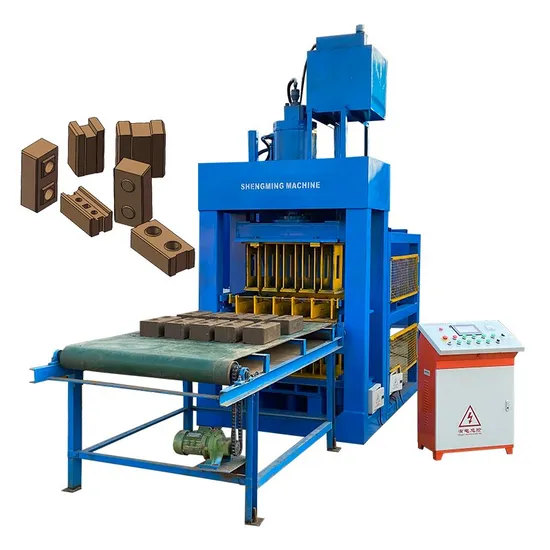

SHM5-10 Full Automatic Soil Red Clay Interlocking Block Making Machine for Sale

Dimension of host machine	2800x1750x3300mm	Power of host machine	11-15 kw
Weight of host machine	3.7T	Hydraulic pressure	200T
Shaping method	Double side press	Capacity (pieces/8 hours)	9000-11000
Power supply	380/400/220V	Forming period	15-18S

This machine adopts the most advanced static press system, matched with high pressure vane pump, the machine can provide pressure of 200T and above. The control system adopts Delta PLC and a human-computer interaction interface, which can adjust the corresponding parameter values according to different raw materials. The hydraulic system adopts domestic well-known brands and has high durability. Single proportional valve control can freely adjust all oil pressures. The compaction system adopts a segmented design, and the main oil cylinder is equipped with an auxiliary oil tank, which can be pressed down instantly with the help of a filling valve. Double oil cylinders on both sides are responsible for lifting and lowering, which greatly improves work efficiency The control system comes with a two-way compaction system, you can freely choose one-way or two-way compaction to meet the needs of different raw materials. SHM5-10 advantages 1. Advanced PLC control system, PLC comes from Delta 2. Touch screen design, the man-machine interface is simpler and easier to understand 3. 200 tons of design pressure is enough to make high-density bricks 4. The compression ratio can be adjusted to adapt to different raw materials 5. The 31.5 MPa plunger pump is stable and efficient

FAQ
Q: What is the material for this machine ?
A: You can use lateriate or other clay material or concrete material, plus a little cement
Q: How many kinds of block can be made by this machine ?
A: By changing mold, this machine can make all type design brick ,block or even paver.
Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally
Q: Will you provide spare parts for this machine ?
A: We will provide you one year free spare parts.can support machine working for many years
Q:Will you provide installation support?
A: We will provide installation video and manual book.online video avaiable also.
Q:How many days to make the machine if place order?
A:Normally need 15-20 days but all depend on molds quantity.

---
