Portable Small Diesel/Electric Engine Mobile Rock Crusher Jaw Crusher

Product Description

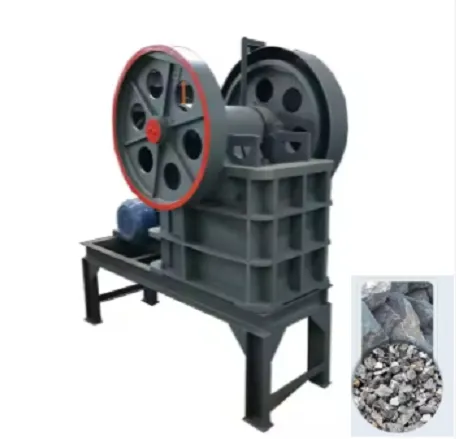

Product Description Jaw crusher
Jaw crusher is mainly used as coarse crusher and medium crusher in mining, building materials, infrastructure and other
departments. According to the width of the feed port, it is divided into three types: large, medium and small. The feed port width is greater than 600MM for large machines, the feed port width is 300-600MM for medium-sized machines, and the feed port width is less than 300MM for minicomputers. The jaw crusher has the advantages of simple structure, easy manufacture and reliable operation.
The working part of the jaw crusher is two jaw plates, one is a fixed jaw plate (fixed jaw), vertical (or slightly outward tilted upper end) fixed on the front wall of the body, the other is an active jaw plate (moving jaw), the position is inclined, and the fixed jaw plate forms a large and small crushing chamber (working chamber). The movable jaw plate makes periodic reciprocating motion against the fixed jaw plate, sometimes separating and sometimes approaching. When separated, the material enters the crushing chamber, and the finished product is discharged from the lower part; When approached, the material installed between the two jaw plates is crushed by extrusion, bending and splitting. Product Parameters

Model	Discharge Granularity	Motor Model	Weight	Output
150*250	2 cm	4-pole 5.5 kW	500 kg	2-7 t/h
200*300	2 cm	4-pole 7.5 kW	800 kg	3-9 t/h
220*350	2 cm	4-pole 11 kW	1.1 t	4-11 t/h
