Four Sides Milling Duplex Milling Machine Purchase-Normal Horizontal Axis Rotary Table Grinder

Product Description

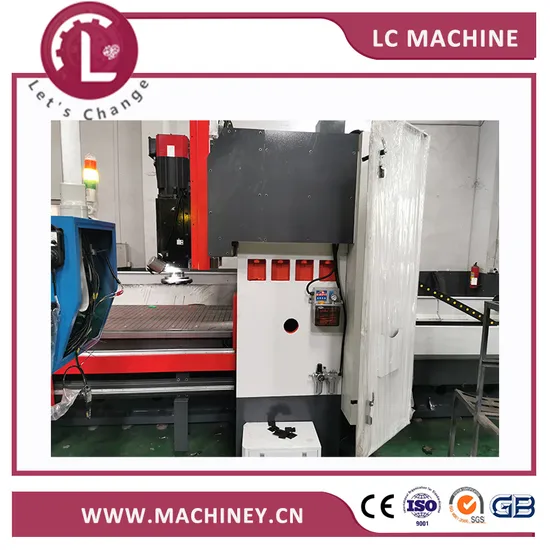

LC-M7180×12C surface grinding machine in horizontal
Product Introduction

The grinder adopts enclosed frame structure with sufficient rigidity and durability of guide rail. The horizontal feed and vertical feed of grinding head are driven by servo motor with ball screw to ensure high feed precision and improve operation convenience. Using humanized operation control panel, convenient operation and measurement, ensure the accuracy of machine tool.
Base Data

Main Technician Parameters
Item	Description	Unit	Specification
System	Control mode	PLC
Work range	Maximum movement of grinding head Horizontal (manual and hydraulic) Vertical (manual and maneuvering)	mm	820 600
	Transverse feed of grinding head (stepless speed regulation) continuous intermittent	/	0.5-2.5m/min 3-20mm/time
	Handwheel feed per grinding head Horizontal Vertical	mm	5 0.5
	Minimum value of vertical feed handwheel	mm	0.005
Worktable	Table size (width × length)	mm	800×1250
	Maximum size of grinding piece (width × length × height)	mm	800×1250×600
	Table longitudinal movement (hydraulic)	mm	300-1350
	Table speed (stepless speed regulation)	m/min	6-25
	Table t-slot number/width	mm	3/28
Grinder	Grinding head motor power speed		15kw 1460r/min
	Parallelism of grinding head movement to working surface	mm	300:0.008
	Grinding wheel size (outside diameter × width × inside diameter)	mm	φ450×63×φ203
	Quick lifting speed of grinding head	mm/min	240
	Distance from center of grinding wheel to table	mm	200-825
electrical device	Total capacity of electrical equipment	KVA	28
	Hydraulic pump motor power speed		7.5kw 1440r/min
	Cooling pump motor power speed		0.25kw 3000r/min
others	Maximum allowable workpiece weight (including electromagnetic chuck)	kg	2000
	Magnetic chuck size (width × length)	mm	800×1250
	Net weight (approx.)	kg	9500

Main Configuration List
Seq	Machine components	Qty(set)	Remarks
1	Engine	1	Including: bed, drag board, table, column, grinding head, etc
2	Hydraulic station	1	Including: valve body, pipeline, lubrication system, etc
3	Cooling system	1	Including: water tank, water pump, etc
4	Grinding wheel dresser	1	Including: Table grinding wheel dresser
5	Electrical system	1	Including: electrical control cabinet, button station, etc

Manufacturing

Production Capacity

Factory Address: No.1 Yintai North Road, Shutian, Humen Town, Dongguan, City, China
R&D Capacity: Own Brand, ODM, OEM
No. of R&D Staff: 160
No. of Production Lines: Above 10
Annual Output Value: US$15Million
APPLICATION


Company Profile Launch Precision Machinery Co.,Ltd (LC Machine) is a professional modern enterprise, with long-term research & development, manufacturing, sales, after-service. The company gathered engineer team who engaged in CNC machine and mould manufacturing for decades , won trust and support from domestic and oversea clients by good idea, excellent design,reliable quality,full service.
The company has absorbed the advantages of NC technology from Germany and Japan and gathering the leading technology from domestic and foreign industries. All machines are marked ISO 9001 and CE, exported to 58 countries. Main products: Duplex milling machine, Vertical gantry milling machine, Side milling machine, Powerful gantry grinder, Cutting machine, Chamfering machine etc.
We are committed to be the No.1 brand in 6 side milling machine and one-stop service supplier in mould processing industry, serving global client , promoting mould processing industry to reach new level.


After-Sale Service
1. Installation services for free.
2. Operation training for free.
3. We will create files for every client, to track product quality and after service.
4. Providing one year (12 months) warranty for free except for the wrong operation by the user . The spare part is not on the free warranty list.
5. Providing maintenance and repair service termly.
6. Seller will provide solution way within 72 hrs once receiving A-F service request from the buyer.

FAQ
Q: Are you a manufacturer or Trading Company?
A: We are a innovative interprise with rich import & export experience and 10 professional production line.Warmly welcome you to visit our factory. Q: Do you have Agency in my country?
A: With the development of our company, we are expanding export gradually to get a bigger worldwide share of marketing.(The United States/ Korea / India / Southeast Asia etc.). Till now, we have agence in India/Korea/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: How can I Install the machine, and What should I do if my machine was broken down
A: We provide free installation service to your home. If your machine was broken, please contact us immediately and we will give you solution way within 48 hours.
Q: Can you support OEM Service?
A: Sure, As your requirement, We would like to make the plan and provide the best service for you.

---
