50Hz 60Hz Natural Gas Generator Set Unit with CHP Cogenerator 200kw 250kVA

Product Description

50Hz 60Hz Natural Gas Generator Set Unit with CHP Cogenerator 200kw 250KVA
GENERAL INTRODUCTION ON SEVENPOWER COGENERATOR SET
-Powered by 6cylinders water-cooled type internal combustion engine
-Air-cooled type alternator
-Engine heat exchanger
-Exhaust heat exchanger made from full stainless steel,longer service life
-Integrated control cabinet
-Safe gas train
-Gas engine control system
-Auto lambda control,easy start
-All necessary engine protections, oil pressure, coolant temperature, over current, over voltage, overload, engine speed, frequency protection, battery voltage
-Easy control system, all information easily read from the controller screen, power output,voltage,current,power factor, engine speed,oil pressure,coolant temperature,battery voltage,run hours,start numbers,alarms,historical records

Main Specifications

Model Name	SP200N
Frequency (Hz)	50
Voltage	400/230
Fuel Type	Natural gas
Continuous Power(KWe)	200kw
Thermal Output	265kw
Electrical efficiency	35.7%
Thermal efficiency	47.3%
Overall efficiency	83%
Engine	Yuchai
Alternator	Kwise, other brands is available on request
Controller	ComAp
Canopy	With or without
Genset Gas Inlet Pressure	4-15kpa
Gas consumption@100% load	0.284m3/kW.h

For more information about the natural gas cogenerator 200kw, please consult with your sales representative.Thanks.

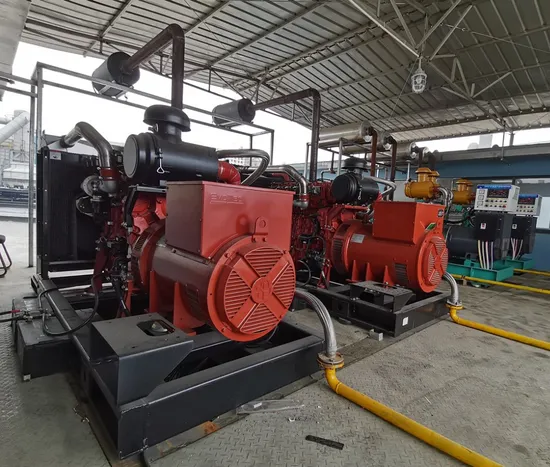

200KW Natural Gas CHP Installations in Europe More Information About Our Factory Our Installations Worldwide
