Basic Info.
Type
Concrete Mixing Plant
Machining Process
Full Automatic
Productivity
20m3/H to 100m3/H
Certification
ISO9001: 2000, CE
Control System
Full-Automatic
Concrete Mixer
Jzm500-Jzm2000
Batching Machine
2-3 Bins Aggregate Batching Machine
Machine Type
Production Line
Discharging Height
1.5m(for Customers Choice)
Core Components
PLC Engine,Gearbox,Motor
After Warranty Service
Spare Parts and Technical Support
Production Capacity
500sets/Year
Product Description

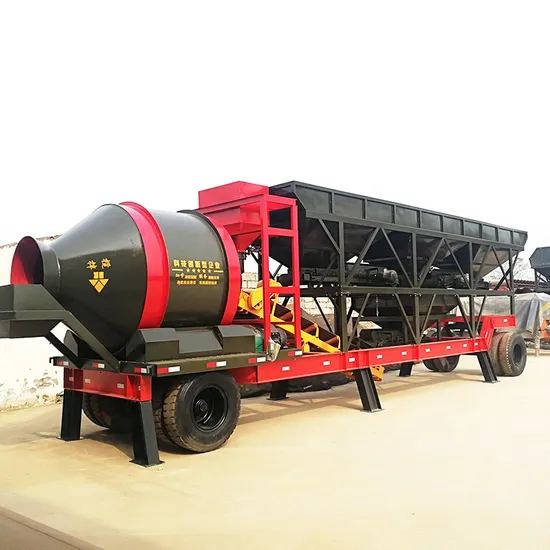

YHZM full-automatic mobile concrete batching plant
The drum mobile concrete mixing plant is a concrete production equipment that integrates the material storage,weighing, conveying,mixing,unloading and automatic control systems of the concrete mixing plant into a trailer unit.Suitable for roads,DAM, Bridges,commercial and residential projects.
Drum Mobile Concrete Batching Plant
1.Quickly mix the concrete mixture evenly,compared with ordinary mobile batching and mixing plant, it has a compact structure 2.Drum type batching plant installations are very easy to use and maintain on site
3.Easy to move the machine as the plant comes with mobility and towing arrangement
4.Cheaper than the ordinary one which can help save customers budgets
5.Digital load cell basedweighing of cement and aggregate while water and additive is based on timer based accurate discharge system
Product Details
Aggregate batching machine
| Drum concrete mixer |
| Mobile chassis | Weighing system |
Product Parameters
Model
|
| YHZM25-2
| YHZM35-3
| YHZM50-3
| YHZM75-3
| YHZM100-4
|
Theory capacity
| m³/h
| 25
| 35
| 50
| 75
| 100
|
Discharging height
| mm
| 1300
|
Total power
| kw
| 42
| 46
| 60
| 67
| 77.5
|
Total weight
| T
| 12
| 13
| 14
| 15
| 26
|
Mixing System
| Model of Mixer
|
| JZM500
| JZM750
| JZM1000
| JZM1500
| JZM2000
|
Mixing motor
| kw
| 4.5KW*2
| 5.5KW*2
| 11KW*2
| 11KW*2
| 15KW*2
|
Discharging volume
| L
| 500
| 750
| 1000
| 1500
| 2000
|
Aggregate System
| Model of Batcher
|
| PLD800-2
| PLD1200-3
| PLD1600-3
| PLD2400-3
| PLD3200-4
|
Aggregate Storage
|
| 4m³×2
| 5.5m³×3
| 6m³×3
| 8.5m³×3
| 14m³×4
|
Max. Aggregate Dia
| mm
| 60/80
|
Measurement System
| Cement weighing
| kg
| 500
| 500
| 560
| 900
| 1200
|
Water weighing
| kg
| 220
| 220
| 220
| 330
| 400
|
Additive weighing
| kg
| 30
| 30
| 30
| 40
| 50
|
Trailer Speed
| Km/h
| 40-60
| 40-60
| 40-60
| 40-60
| 40-60
|
Optional cement silo
| T
| 50/100
| 50/100
| 50/100
| 50/100
| 50/100
|
Company Profile
HENAN HENGYUAN CO.,LTD.
Henan hengyuan Co., Ltd. is a professional engage in the research development sale and service on construction machinery: concrete batching plant,concrete pump,concrete mixer with pump,mobile concrete batching plant,stabilized soil mixing plant and cement silo.
Our office is located in Zhengzhou City,Henan province.Our factory is located in Xingyang,Zhengzhou City.Hengyuan concrete machinery has a long history of 25 years and was established in 1999.All of hengyuan Iproducts have passed ISO9001 and the batching plant have passed CE certification.
We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world.Our main market including Canada,Uzbekistan,Russia,Peru,Brazil and Africa.
We are equipped with the CNC cutting machine, robot welding machine to ensure machine quality.Our R&D department provide the strong technical support and enable us to receive some OEM, ODM projects.We are reliable supplier of the construction machines supply with 18 months warranty.
Certifications
Customer Visiting
Packaging & Shipping
Successful case
FAQ
Q1:Are you trading company or a source factory? We are factory.We mainly design and manufacture concrete equipment (concrete batching plant, concrete pump) Q2:What are the terms of payment in your formal trade? Normally we can work on T/T term T/T:30%T/T prepayment , 70% paid by T/T before delivery. Q3:What about the delivery time? Usually 15-20 days after receving the deposit. Q4:What's your after-sale service? 18 months warranty for main parts since departure. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well. Q5:What should I do if I experience a problem on our equipment? You could email us the photos to show what happens or call us.Also on-site technician service available as request.
>>
