Servo Universal Electronic Stripping Machine Price/Tensile Tester/ Textile Tensile Strength/Metal Testing Machine/Electronic Universal Testing Machine Yg026dk

Product Description

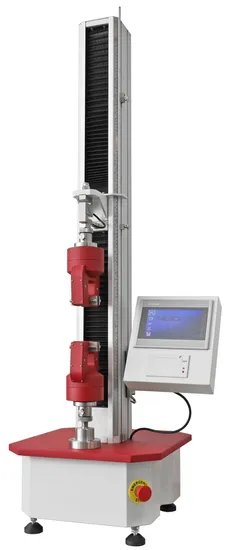

Textile Tensile Testing Machine YG026DK
Aplication
Textile Tensile Testing Machine, to determine the physical and mechanical
performance of tension, tearing, compression, bursting, rapture, flexibility, shear and peel and seam slippage. Especially designed to test a wide range of yarn, fabric and leather, with a huge assortment of specimen grips and software available; it can also be used for strength test of rubber, plastic, metal, wire, paper, packaging, and other materials.
Standards
ISO 13934.1 ISO 13934.2 ISO 13935.2 ISO 9073.3 ISO 13936-1
ISO 9073.4 ISO4606 ASTM D5035 ASTM D5034
ASTM D2261 ASTM D5587 ASTM D1683 ASTM D4964
Features
Touch screen control, Chinese and English menus, man-machine dialogue mode, convenient operation.
The built-in thermal printer is convenient for printing test results on site.
Professional computer analysis software can realize two-way operation with the computer, and can carry out report statistics, curve chart intuitive analysis, etc; The software is an open software, which can edit the required test program according to its own needs; It can also support remote upgrading and maintenance of instruments.
The transmission system adopts AC servo drive system, synchronous belt pulley and fine Mi ball screw assembly;
The cross beam of the instrument moves stably, with low noise and high elongation accuracy.
Aluminum alloy profile column is adopted, and the surface is treated with high-temperature curing and plastic spraying, which is scratch resistant and not easy to fade.
Adopt a variety of protection measures: upper and lower limit protection devices of beam; Fixture anti-collision protection device; Sensor overload protection; Overcurrent and overvoltage protection; Displacement and load limit software protection can be set; And real-time monitoring and displaying fault information of main components; Therefore, the use of the instrument is more safe and reliable.
It provides a variety of humanized automatic modes; The clamping distance of the instrument is set digitally and positioned automatically.
High precision bidirectional sensor, tensile and bursting tests do not need to replace the sensor.
Different test functions of pneumatic clamping can be realized only by replacing the clamping piece, without replacing the fixture, and the test efficiency is higher.
The instrument control mode is optional in three modes: host touch screen control, desktop computer control and tablet computer control (WiFi communication optional).
Specifications
Force reading: cN,N,kN,gf,kgf,lbf.
Tensile speed: 0.1-500mm / min digital speed, error ≤ ± 2%.
Elongation Resolution: 0.01mm.
Measuring system high-precision force sensor.
Sampling frequency of system 2000 times / sec.
Force measurement range 1% of full scale to 100%.
Minimum scale value: 0.01N.
Force measurement accuracy: ≤ ± 2% F • S.
Gauge distance limit control, digital setting.
Gauge distance accuracy: ± 0.1mm.
Working space : 600mm.
Sample holder pneumatic clamping.
Holder control button switch and foot switch.
Built-in intelligent active force and displacement alarm system.
Models YG026DK
Power/Air AC220V 50Hz
Demensions 430*480*1500mm
Weight 55kg
Instrument Operation interface
Computer operation interface
