Hydropress FruitGrapeApple Wine Press Machine squeezing machine

Product Description

Product Description
Hydropress FruitGrapeApple Wine Press Machine squeezing machine
Product Description
Introduction of grape squeezing machine
The operation process of the ice grape press first needs to put the ice grapes into the cylinder, push the cart to the bottom of the machine, and then directly start the switch hydraulic juice, the grape juice will automatically flow out from the discharge port, and the remaining grape skin is pressed into a round cake shape and can be taken out directly. The working pressure of the equipment can be set, and the pressing time can be set freely: including the total time of single press and the reciprocating frequency of short-distance press.
Parameters of grape squeezing machine

Model	TZ-1000	TZ-800
Capacity	0.7t/h	0.5 t/h
Power	3 KW	3 KW
Working Pressure of Cylinder	≤25Mpa	≤25Mpa
Maxmium Bearable Pressure	≤30Mpa	≤30Mpa
The route of Piston Rod	870mm	700
Diameter of Basket	1000 mm	800
Height of Bsket	1100 mm	950
Volume of Bsket	780L	470L
Dimension	2280×2000×3000mm	1925×1800×2665mm
Weight	1950kg	1600k

Application of grape squeezing machine
Applicable to ice grape juice, fruit and vegetable juice, fermented fruit wine, rice wine, rice wine, glutinous rice wine, rice syrup, grain wine, distiller's grains residue, fruit and vegetable enzymes, fermented enzymes, Chinese medicine residue, soy sauce residue, pickled pickles, vegetables, biological fermentation feed In the processing industry such as slag, press filtration, juice squeezing, solid-liquid separation, slag juice separation, dewatering and squeezing, etc., the effect is different due to different materials.

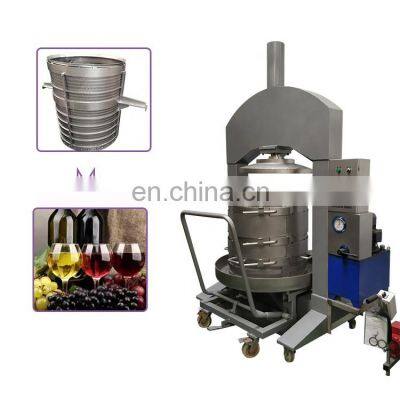

Picture display of grape squeezing machine
Features of grape squeezing machine
1. The main machine is made of 304 stainless steel, with high strength, good corrosion resistance and long service life, in line with the national food industry standards;
2. This machine is suitable for use in soy products, pickled vegetables, distiller's grains, enzymes and other processing industries, and is the main equipment for press dewatering;
3, the structure is simple, sturdy and durable, easy to maintain, high pressure, high production efficiency
4. In addition to the inlet and outlet, the rest adopts a sealed structure, and the environment is clean and hygienic.
5, we design for automatic discharge, saving time and labor, to improve your work efficiency.
6. The base of the pressure plate adopts a special process to ensure the continuity and stability of the pressure plate when it is pressed down, and to ensure the uniform dehydration of the material.
7. The material basket is processed by one-time molding process, the inner surface is refined and polished, easy to clean, eliminate the sanitary dead angle, ensure that the material structure and the material are not damaged, and the press plate, the barrel and the frame of the machine are resistant. Made of acid-base 304 stainless steel.
8. The hydraulic cylinder adopts four kinds of sealing forms, which greatly improves the service life of the cylinder and prevents the hydraulic oil from seeping out contaminated food.
9, we can also customize a press according to your requirements and production.
10. Pressing and dehydrating The juice collecting machine is mainly composed of a frame, a body, a pressing plate, a material basket, a hydraulic system, a pumping station system, and an electric control part.
FAQ
1. How long will the transportation take?
Depending on your quantity, for goods, we have in stock. Delivery takes a few days to comply with your request to replace the plug or other configurations. For regular order, by ocean shipping takes 20-40 days. For small machines, express delivery for 3-8 days.
2. Are you a manufacturer or distributor?
We are an experienced manufacturer and exporter. We own a technical team comprised of over-average experts in R&D and innovation. Notably, we own high-level factories and cooperating factories who can offer efficient manufacturing and high-end products when dealing with a bulk order.
3. How do I know about the details and quality of your machine?
First, we have product brochures covering all details including parameter, material, output, etc. of most of our production lines; secondly, we can provide you with videos filmed on-site with details about the working process and how mechanical parts work during operation; at last, you are warmly welcomed for on-site inspection at our factories.
4. What certification do you have?
We have CE, BV, SGS, ISO, CCC, etc. Please do trust us, we are determined to provide you the best quality equipment.
5. Why choose us?
We have dedicated to the machinery manufactory industry for more than 10 years with a rare negative response. We are time has proven-- client’s response and comments are the most validated evidence.
