US$20,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Stone Cutting Machine
Usage
Ceramics, Fire Brick, Red Brick, Jadestone, Cement Brick, Granite, Marble
Application
Construction, Stone Industry
Cutting Ability
High Speed
Transport Package
Standard Export Package
Specification
4000*2800*2200 mm
Origin
Jinjiang, Fujian, China
Production Capacity
50 PC/Month
Product Description
Machine Features
-Powerful 60HP motor
-Easily cuts split-face or natural finished stone, brick and other hard stones
-Motor Inverter
-Belt Motor Inverter
-Belt Automatic Amp Control
Specification
| Main motor power | Unit | 60 Hp (45KW) |
| Max cutting size | mm | 350*358*500 |
| Blade size | mm | 1000-1200 |
| Motor forward backward stroke | mm | 0-170 |
| Motor up down stroke | mm | 0-200 |
| Conveyor speed | mm/M | 0-2200 |
| Conveyor load capacity | kgs | 400 |
| Conveyor width | mm | 350 |
| Return conveyor load capacity | kgs | 300 |
| Return conveyor width | mm | 700 |
| Weight | kgs | 5000 |
| Dimension | mm | 4000*2800*2200 |
Footprint

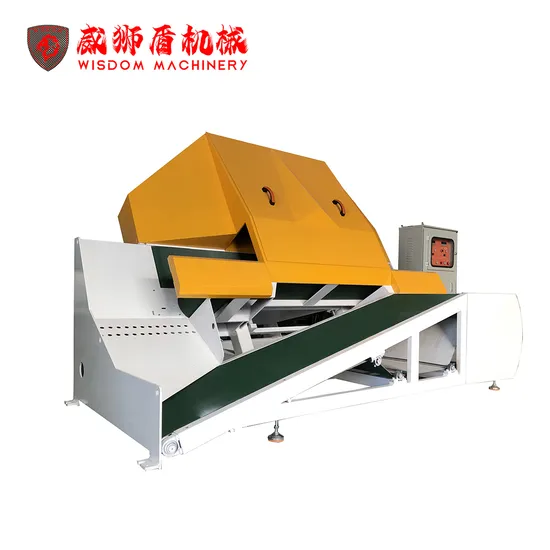

Product pictures
Company Intruction
You can always trust Wisdom
With more than 10 years committed to the stone machinery industry, Wisdom Machine is an experienced manufacturer.
Our machines are designed with American standard, and for maximum durability and high efficiency so that we can provide competitive stone machines for customers and continuously create value for customer, to achieve mutual benefit.
Package and Loading
FAQ
1. What is your Warranty Time
We provide 2 years free parts warranty for our veneer saw.
2. What is the MOQ?
1 Set
3. Can you make custimzed stone machine?
We have experienced and professional engineer, to make custmized stone machine is our advantage.
4. What is the lead time of your machine?
For standard machine, takes around 20-30 days, for custimzed machine, lead time will depends.
>>
