FPM-5000 Low Cost Patch Cord Cable Making Machine Programmable MPO Ferrule Connector Polish Equipment Fiber Grinder & Polisher Fiber Optic Polishing Machine

Product Description

NEOFIBO FPM-5000 MPO Programmable Polisher for Ferrule Connector Fiber Optic Polishing Machine Why choose us
> Provide you with reliable polishing solution;
> 17+year Manufacturing Experience for OEM/ODM polishing program;
> Independent research and development patent - Neoholder®;
> Products have CE, ROHS certification;
> Support online video synchronization inspection machine;
> Equipment test report and operation guide can be provided;
> SGS certified factory, delivery speed and secure,50 units in stock;
> 30 days quality problems can be returned;

Product Description

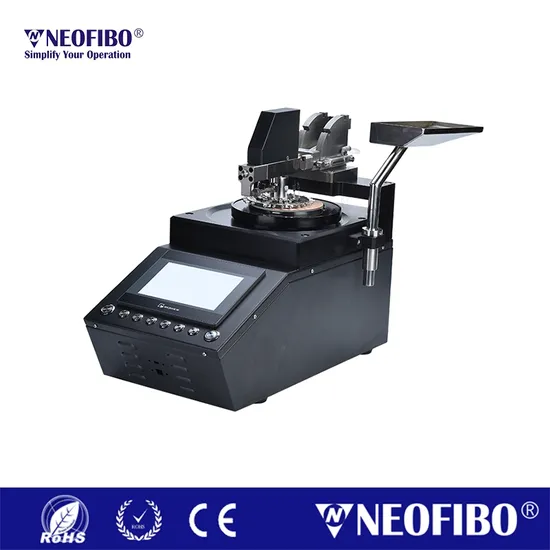

Product Description: > FPM-5000 is a type of programmable polishing machine, which is designed for polishing MPO, MTP connectors, and MT ferrules. > Software in the machine saves regular polishing parameters for MPO ferrules and SC, FC, ST, LC, E2000 connector. > The air source controls the pressure on each connector. > Using Neofibo recommended the consumable and polishing parameters, you could easily get high quality end-face and perfect geometry dimensions. Key Features: > CE certified product from Neofibo; > Pneumatic pressurized, driven by precision motor; > Variable frequency motor transmission, total power 200W; > LCD touch screen, free switching between Chinese and English interface; > Built-in multiple groups of verified polishing parameters; > Up to 6 steps of polishing, the last two steps can also be set as rework polishing; > Precise quantitative control of polishing pressure, speed and time; > Suitable for precision optical component polishing such as MPO / bare fiber / fiber optic connectors / FA and so on.

Electrical specifications	110V/230V, 50Hz,
Fuse	2A/250V
air pressure	>= 0.6Mpa
dimension	64*40*61cm
Gross weight	55kgs

To know more products, please check quick links below connected to our homepage. Feel free to contact us.

Fiber Polishing Machine	Fiber Polishing Fixture	Fiber Production Line Equipment	PM Fiber Alignment Systerm	Fiber Polishing Consumable
Fiber Cleaning Solution	Optical Power Meter	Fiber Tool	Fiber Optic Connectors and Apater	Indoor Cables

Helpful Links
For instant communication, please click hereFor our catalogs, please click hereFor our home page, please click here
If you can't find a fixture suitable for you, please contact the supplier, we have professional staff to provide you with services. Application
> Mainly used for polishing fiber optic connector, patchcord, ferrule end face;
> Or non-standard materials like metal, glass, ceramic end face polishing;
> Or precision parts end face polishing.
Contact Us >>>Go
Technical parameter

Specification:

Model	FPM-5000
Pressure Source	Compressed air
Power	200W
Number of Positions	12~24 positions
Voltage	220VAC, 50/60Hz
Scenes of Application	Precision optics such as MPO, bare fiber, fiber optic connector, FA and glass capillary
Suitable Connector	SC,FC,ST,E2000,MU,LC,MPO
Machine Dimensions	64*40*61cm
Gross Weight	55 kgs

Standard Configuration:

NO.	Description	Quantity	Unit
1	Polishing machine	1	Set
2	Power cable (220V)	1	Piece
3	Waste water storage basin	1	Piece
4	2 meter wastewater transfer hose	1	Piece
5	Operation manual	1	Piece

Contact Us >>>Go
Polishing Effect
About us
Shenzhen Neofibo Technology Limited. We have 17 years experience.could provide optic fiber production line and service for you. you can count on us to offer you the best solution.Neofibo is focusing on the field of fiber optic polishing solutions.We specialize in manufacturing fiber optic polishing machine, design various optical fiber connectors polishing fixtures, provide completed polishing process and materials for all kinds of fiber optic connectors.Neofibo can provide not only products, but also technical services and R & D support.

FAQ
1.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn't be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
2.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
3.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
4.what services can we provide?
