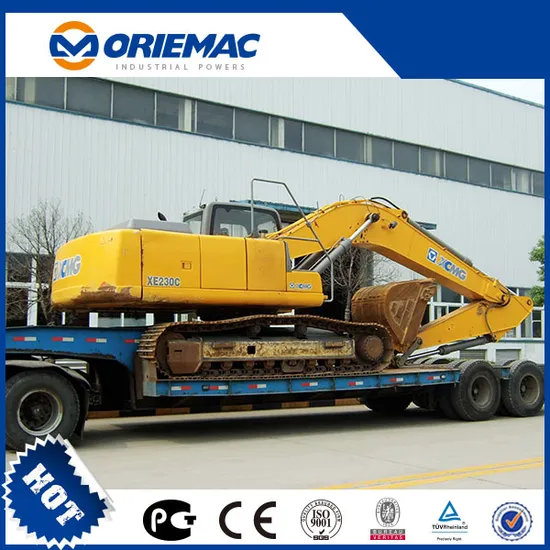

Hot Sale 1.0m3 23tons Crawler Excavator Xe230c

Product Description

Hot Sale 1.0m3 23tons Crawler Excavator Xe230c
adopts a YANMAR engine excellent in environmental protection and energy saving. Moreover, it uses a load sensitive hydraulic system, able to guarantee operator's better controlling of the machine and better movement coordination, reduce the demand for operation proficiency of the driver; in addition, the reliability of this system has been recognized by the majority of users. The stress analysis and structure optimization of such key components platforms, swing arms, bucket rods and lower chassis has fully guaranteed the reliability of the structural members. The daily maintenance is sufficiently convenient and you only need to open the rear hood for maintenance of the engine oil, fuel and air filters.

Model			XE230
Bucket capacity		m3	1.0
Standard bucket width		mm	1,260
Operation weight		kg	23,520
Dimension(in transportation)	Overall length	mm	10,160
	Overall width	mm	2,990
	Overall height	mm	3,050
	Min. clearance	mm	485
Engine	Model		CC-6BG1TRP
	Total displacement	L	6.494
	Rated output power	KW/rpm	125/2100
Digging performance	Max. digging height	mm	9,670
	Max. dumping height	mm	6,795
	Max. digging depth	mm	6,920
	Max. vertical digging depth	mm	6,165
	Max. digging radius	mm	10,270
	Boom deflection angle	°
	Min. slew radius	mm	3,870
	Min. rear slew radius	mm	2,940
	Bucket digging force	kn	163
Track type			Steel
Track width		mm	600
Travel System	Track length	mm	4,255
	Wheel base	mm	3,462
	Track gauge	mm	2,390
	Travel speed (Gear I/II)	km/h	5.5/3.5
	Gradeability	%	70
Slew speed		rpm	12.1
Bulldozing plate	Bulldozing plate width	mm
	Bulldozing plate height	mm
	Lifting distance	mm
Hydraulic pump type			Variable pump×2
Slew motor type			Piston hydraulic motor
Travel motor type			Piston hydraulic motor
Fuel tank capacity		L	400
Hydraulic oil tank capacity		L	240

---
