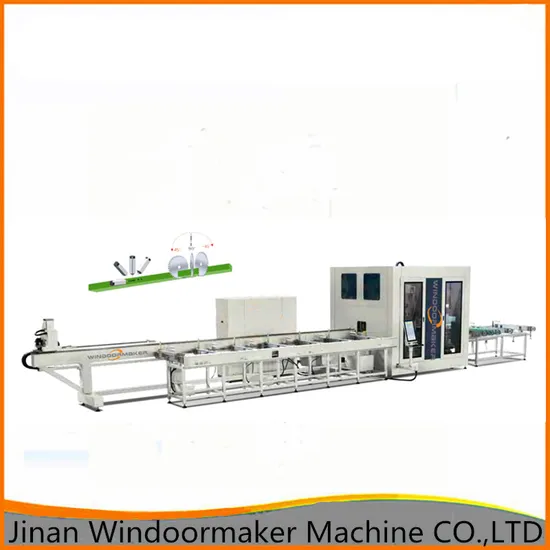

Aluminum Window Door Machine Aluminium CNC Machining and Cutting Center Machine with 12 Spindles

Product Description

Product Description
Specification:
Three axis CNC controlled machining center can do all operations on four sides of aluminum profiles such as cutting, marking, milling key holes, copy routing for water slot milling, hinge holes, handle holes etc. 12 high speed custom made and air-cooled spindles are able to milling for all angles from 22,5° to 135° with 0.1° precision, by means of a servo axis-controlled. 600 mm diameter saw blade can be rotate 0 to 180° 3 axes and 360 rotatable gripper positioning. Automatic profile length recognition. Ability to load profiles in any size from 2500 mm to 6000 mm for profile feeding unit. Equipped with an automatic lubrication system. A profile conveyor system with high precision. ERP software access with download cutting list. Moving clamp systems Dust collector sets, can move dust to a box. Technical parameter

Power supply	380v 3p 50hz/60hz
Motor power	55Kw
Spindle power	6KWx6
Air pressure	0.6~0.8MPa
Air consumption	120L/min
Cutting angle	0°-180°
Cutting length	330-4500mm
Cutting width	200mm(90°)
Cutting height	200mm
Saw blade dia	600mm
Feeding speed	0~120m/min
Milling surface plane	≤0.10mm
Cutting length error	±0.15mm/1000mm
Overall dimension	16600x3500x3000mm (LxWxH)
Weight	9000Kg

Certifications

Company Profile

Jinan Windoormaker Machine CO., Ltd. Is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.
Windoormaker is a factory with cover area of 15000 m² . During the years developing, has made many devotes of machine improving, introducing new equipment and technology innovation for the production.


Machine at old customer


Packaging & Shipping

---
