Product Description
Product Description

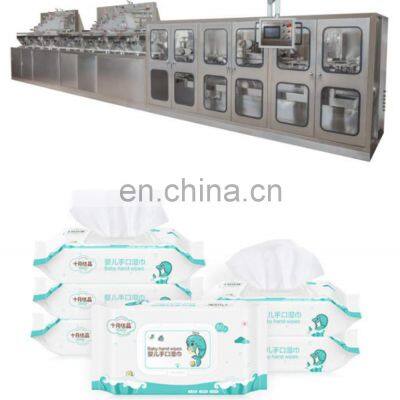

Full Auto High Speed Wet Tissue Folding Wet Wipes Making Machine Baby Wet Wipes Making Machine Wet Tissue Manufacturing Machine
High SPEED WET WIPES FOLDING MACHINE
Production flow: unrolling - slitting fabric into lanes - folding - wetting - cutting - pile&counting - delivering
Main technical parameter(suitable to wet tissue for large size packing)
Product type: wet wipes(non cross folding)
Product speed: 250-380 cuts/min (3000-4500 pcs/min )
Suitable raw material: air laid paper, spunlace/hot-rolling nonwoven fabric
Weight of raw material : 40-80g/m
Folding way : “Z” shape (pop up and non-pop up)
Cutting unite:. a.double paper shelves
B.10 lanes or 12 lanes,2 rolls
c. raw material roll width :900~1000mm
Length of wet tissue:140-220mm (setting via touchscreen)
Size of raw material: (1000-1250)×Ø1000 (mm,W×Dia)
Wet tissue unfolded size: (140-220)×(150-250) (mm,L×W)
Wet tissue folded size: (140-220)×(90-110) (mm,L×W)
Material supply system: Servo motor
Cutting system: Converter motor
Piling system: Servo Motor
Power supply: 380V 50HZ
Power: 10KW
Size of machine: 10200×3300×2000(mm,L×W×H)
Weight of machine:5000 kg
Water Tank:400L 2pcs
Optional making :HY-360 WET WIPES PACKING MACHINE
MACHINE IN DETAILS
Full-auto wet wipes Packing Machine(auto-splicing packing film)
Production type: baby wet tissue
Tip: equipped with 8 units of servo motors
Production process : connect to 2700AB/12 folding machine → feeding wipe automatic →conveying to packing machine → setting packing film → setting window hole label → Central sealing →End sealing and reciprocating cut → Output finished products.
MainTechnical parameter:(Suitable to pack :40-120pcs/bag)
Product speed:30-60bag/min
Diameter of raw film roll:≤380mm
Width of raw film roll:≤420mm
Wrapping material:PP,OPP,PET,PE, and all suitable films
Shapes of packing:pillow type packaging
Packing length:100-300mm(touch screen setable)
Packing Width:80~150mm(adjustable)
Height of packing:10-100mm (adjustable)
Horizontal sealing pattern:reciprocation heat sealing
Drive motor pattern: all servo drive
Control pattern:Yaskawa MOTION control system
Operation interface:7 inch LCD
Film supply system:servo drive
Horizontal system:servo drive
Feeding system:servo drive
Labeling system:servo drive
Punching system:servo drive
Horizontal protection:Torque overload protection
Air requirements:0.5-0.8Mpa 0.01m3/min
Electric power requirements:380VAC 50/60HZ
General power:7.6KW
Dimension of Machine : 5410×1150×1900mm
Standard equipment:Date printing unit,Punching unit,Labelling unit,Inserting corner unit,Electrical eye tracking automatically
MACHINER IN DETAIL AFS:
Full Auto High Speed Wet Tissue Folding Wet Wipes Making Machine Baby Wet Wipes Making Machine Wet Tissue Manufacturing Machine
>>
