US$1,300.00-1,700.00
|
1 Piece
(MOQ)
|
Basic Info.
Controlling Mode
Artificial
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Max Drilling Dia (mm)
45mm
Spindle Taper
M.T.4 or R8
Transport Package
Wood Case
Production Capacity
200PCS/Month
Packaging & Delivery
Package Size
1850.00cm * 750.00cm * 1000.00cm
Package Gross Weight
505.000kg

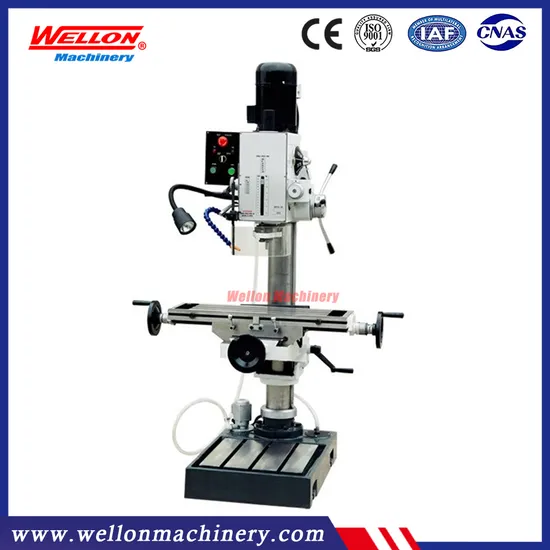

Product Description
Product Description
Product Parameters
Performence Features:
Drilling, milling and tapping.
Head swivels 360 degree horizontally.
Headstock and Worktable up & down perpendicularly.
Super high column.
Precision micro feed.
Positive spindle lock.
Distinct auto device for releasing tools, operate easily.
Geared drive, lower noise.
Technical parameter:
| Model | Z5045C/1 |
| Max.drilling capacity | 45mm |
| Spindle taper | M.T.4 or R8 |
| Spindle travel | 130mm |
| Step of spindle speed | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m |
| Spindle feed steps | 6 |
| Spindle feed range | 0.06-0.3mm/r |
| Distance from spindle axis to column | 290mm |
| Distance from spindle nose to table | 700mm |
| Distance from spindle nose to base | 1125mm |
| Headstock travel | 250mm |
| Swivel angle of headstock | 360/ 90 degree |
| Worktable travel | 600mm |
| Worktable size | 730x210mm |
| Worktable travel X,Y,Z axis | 500x205x570mm |
| Base size | 417x416mm |
| Swivel angle of table | 360 degree |
| Table tilt | +/-45 degree |
| Size of stand base | 417x416mm |
| Motor Power | 1.5KW(2HP) |
| Net weight/Gross weight | 455kg/505kg |
| Packing size | 1850x750x1000mm |
Standard accessories:
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Machine vice
Coolant system
Work lamp
Spindle guard
