Aypa Automatic Polishing Metal Part Edge Rounding Deburring Machine for Grinding Steel Aluminium Punch or Laser Cutting Burrs

Product Description

AYPA Automatic Polishing Metal Part Edge Rounding Deburring Machine for Steel Aluminium Plat
Product Description

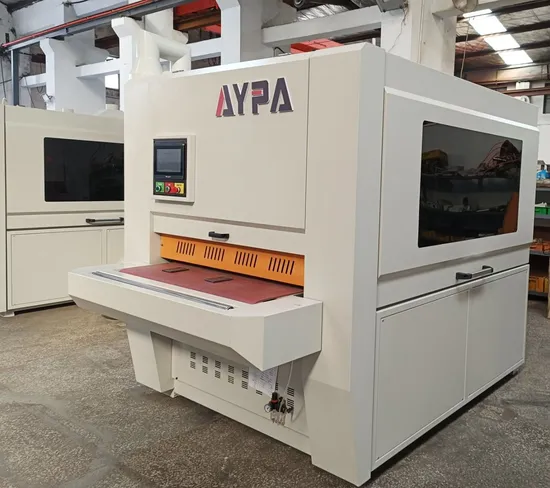

AYPA® G-W Series automatic deburring machine is engineered and designed to your exact needs.
* This series is the most versatile machine that AYPA offers.
* AYPA metal deburring machine is popular at automotive industry, metal processing center, aerospace industry etc.
* It mainly works on removing burrs during punching, plasma cutting, laser cutting or flame cutting.
* AYPA deburring machine can greatly improve workpieces' accuracy and appearance.

Product Parameters

ITEMS		SPECIFICATIONS
Models		800/1000/1100G-W
Processing Sheet Width		800/1000/1100MM
Processing Sheet Thickness		0.5-80mm
Min. Processing Sheet Size		50x50mm
Chamfer Range		R0.1-0.5mm
Feeding Speed		0.5-6m/min
Roller Speed		8-20r/s
Revolution Speed		8-12r/s
Sand Belt Dimension		2000×820/1020/1120mm
Roller Dimension (4pcs)		Φ300×300/330/400mm
Motor Power	Roller Motor	2.2Kw*2
	Revolution Motor	1.1Kw
	Sand Belt Motor	11kw
	Conveying Motor	3Kw
	Roller Lifting Motor	0.37kw
	Worktable Lifting Motor	0.37Kw
Vacuum Suction Motor		7.5/15kw
Total Power		27.74kw
Air Pressure		0.6Mpa

Deburring Workpiece Display
Detailed Photos
# Touch screen control operation interface, intuitive and visual.
# Rotate the brush grinding head in two directions for better polishing.
# Simply and fast replace the brush roller grinding head.
# Sand belt and roller could be customized based on your workpiece.
Packaging & Shipping
Company Profile
AYPA is a technological innovation factory with over 20 patents.
* It specializes in producing CNC turret punch machine, bending machine, CNC deburring machine etc.
* Automatic bender can bend complex workpiece at one-time without manual operation.
* Servo press can automatically punch, roll, cut and form.
* Both can work with stack robot to realize highly automated cabinet, kitchenware, fire door, aluminum wall industry.
* We provide customers R&D, production and after-service.
AYPA represents our commitment to lead industry into new era.
FAQ
1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and product photos.

---
