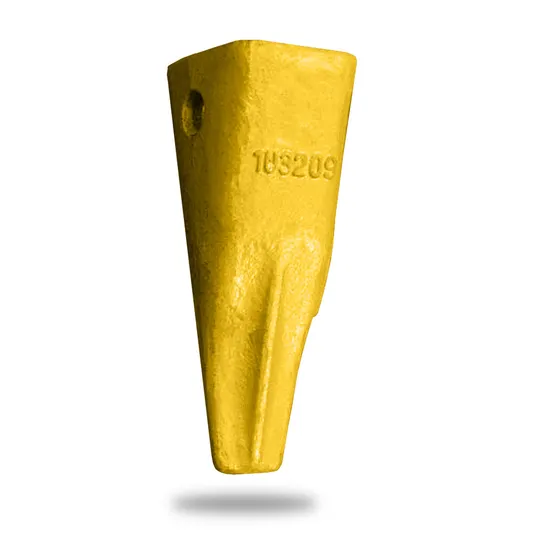

1u3209 Rock Penetrator Mining Bucket Tooth for Excavator

Product Description

Material Specification

Material:	Carbon steel, Alloy steel,etc, such as T1,T2,T3,T4.with casting/forging process
Machine type:	Excavator, Loader,Bulldozer,etc.
Brands:	TIG / SAR
Heatment;treatmentt:	Quenching and tempering treatment
Hardness:	Teeth : HRC48-52 ,Impact value >=17J Adapters : HRC34-38 ,Impact value >=25J
Work condition:	With excellent elongation and tensile strength, suitable for many different hard working conditions.

rock penetrator bucket tooth for a J200 series; takes a 9W7112 pin and an 8E6209 sleeved retainer.
Quality aftermarket G.E.T. (bucket teeth) for CA-T, J-C-B, Ca-se, Ko-ma-tsu, Ku-bo-ta and many others including manufacturers for all your backhoe, loader, skid steer, grader, scraper and excavator bucket tooth (teeth) needs.
STARKEA Products are Excavator bucket teeth&adapter, Grader Blades,excavator undercarriage parts, excavator buckets, slewing bearings, high strength fastners, pin&retainer, bolts&nuts, ect and customized Investment casting, die casting, sand casting, Stamping and machining parts with kinds of materials like carbon steel,Stainless steel,alloy steel, grey iron ,ductile iron ,aluminum.copper ect.
Mechanical Property

Material	Hardness	V-Norch	Tensile	Elongation	Yeild
T1	47-52HRC	akv>=16J	>=1499Mpa	>=3%	>=1040N/mm2
T2	48-52HRC	akv>=20J	>=1500Mpa	>=4%	>=1100N/mm2
T3	48-52HRC	akv>=20J	>=1550Mpa	>=5%	>=1100N/mm2

For general purpose we recommend Grade 2 which is both strong and wear long. For Grade 1 material, we reduce the alloy composition; therefore the wear life is 2/3 of Grade 2. And our Grade 3 is best material which wears 1.3 times of Grade 2.

PART NO.	WEIGHT (KG)	DESCIPTION	FAMILY/MODEL
135-9300/4T2203RP	9	TIP HEAVY DUTY	J300
135-9400/7T3403RP	17	TIP HEAVY DUTY	J400
135-9600	54	TIP HEAVY DUTY	J600
135-9800	94.6	TIP HEAVY DUTY	J800
138-6451/9W1453RP	23	TIP HEAVY DUTY	J460
168-1451	11	TIP HEAVY DUTY	J460
144-1358/4T2353RP	10.3	TIP HEAVY DUTY	J350
144-1358	11	TIP HEAVY DUTY	J350
138-6552/9W1553RP	29	TIP HEAVY DUTY	J550
138-6552	30.5	TIP HEAVY DUTY	J550
1U0257	7.7	BOLT-ON ADAPTER	J250
1U0307	11	BOLT-ON ADAPTER	J300
1U1254	5.3	WELD-ON ADAPTER	J250
1U1304	7.6	WELD-ON ADAPTER	J300
1U1350	9.8	WELD-ON ADAPTER	J350
1U1354	15	WELD-ON ADAPTER	J350
1U1357	17.8	WELD-ON ADAPTER	J350
1U1454	17.3	WELD-ON ADAPTER	J450
1U1857	10	UNIT TOOTH BOLT ON	J250
1U1858	15.1	UNIT TOOTH BOLT ON	J300
1U1859	15.1	UNIT TOOTH BOLT ON	J300
1U1877	12.4	UNIT TOOTH BOLT ON	J300
1U1878	23	UNIT TOOTH BOLT ON	J300
1U1879	23	UNIT TOOTH BOLT ON	J300
1U1888	29.5	UNIT TOOTH BOLT ON	J350
1U1889	29.5	UNIT TOOTH BOLT ON	J350
1U2208	3.8	CORNER ADAPTER LH	J200
1U2209	3.8	CORNER ADAPTER RH	J200
1U3201	1.45	TEETH SHORT	J200
1U3202	1.35	TEETH STANDARD LONG	J200
1U3202P	1.4	TEETH ROCK	J200
1U3202TL/9W8209	1.35	TEETH TIGER	J200
1U3202WTL/135-8208	1.35	TEETH TWIN TIGER	J200
1U3209	1.25	TEETH PENETRATION	J200
1U3251	2.7	TEETH ROCK	J250

---
