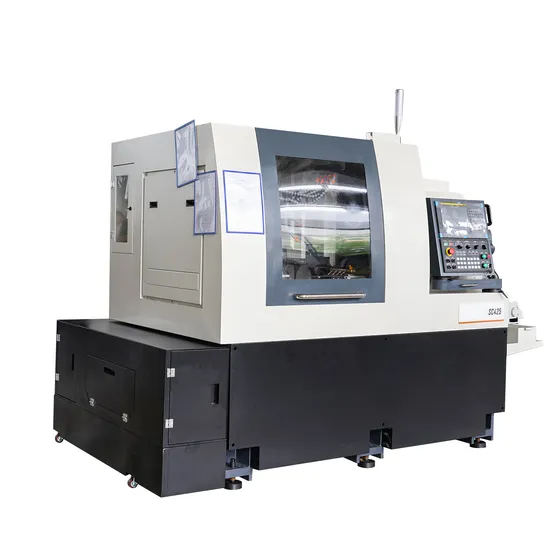

Swiss CNC Lathe Machine Syntec 220tb and Compact Design

Product Description

Product Description
Experience the extraordinary versatility of the Swiss-style lathe, famously known as the CNC automatic lathe. This engineering marvel in precision processing machinery encompasses a wide array of functions, including tapping, milling, drilling, and turning operations with unmatched precision. Equipped with revolutionary dual spindles and a pioneering double Y-axis, this machine excels in simultaneous processing, significantly reducing processing time. Its exceptional strength shines in the batch production of complex, non-standard components, particularly precision hardware and shafts that require specialized shaping solutions.
Product Parameters

Items		SX325
Mechanic	System	FANUC 0i TF-PLUS	SYNTEC 220TB
	Max.RPM	Main8,000min-1/Sub8,000min-1	Main6,000min-1/Sub8,000min-1
	Max.Turning Diameter	φ32mm
	Main Spindle Stroke	280mm
	Rapid traverse speed	32m/min(X1:24m/min)	24m/min
Tools	O.D Tools	6X [16×16]
	I.N Tools	5X [φ20-ER16]
	Cross Driven Tools(integration)	4X [ER16]
	Back end tools(fixed)	4X [ER16]
Motors	Main	5.5/7.5KW	5.9KW
	Sub	1.5/2.2KW	3.9KW
	Cross	0.55/1.1KW	1KW
	Drive	0.75KW	1KW
	Coolant	0.9KW
Others	Coolant tank capacity	200L
	Lubrication tank capacity	1.8L
	Central Height	1,000mm
	Weight	3,800Kg
	The size (L×W×H)	2581×1563×1791mm
NC NC Control	/Controllable Axes	7axis/4axis
	LCD	LCD 10.4"
	System standard parameters	Standard
	Rigid tapping	Standard
	Hand wheel	Standard
	/ Synchronous/hybrid control	Standard
	Helical interpolation	Standard

Items
Standard units	Hand wheel	/C+ Main/Sub axis C + brake
	Floodlight	The product output device
	Transformer	Centralized lubrication system
	Three color light	Synchronus rotary guide bush holder unit
	C:0.001° C axis resolution: 0.001 °	Auxiliary shaft workpiece ejection device
	M Air blow on Sub spindle	Cooling box
0ptionanl units	Bar feeder	Long after loading device
	Chip conveyor	Rectangular power seat
	Oil cooler	Dynamic seat adjustable Angle
	Gun drill	After the end of the quick change perspective
	Oil mist collector	2[ER16]+1 [ER16] 2axis eccentricity tools (rotating)+1axis (fixed)
	High pressure pump	3[ER16] 3axis eccentricity tools (rotating)
	Thread whirling rings	3+[ER16] Back end tools 3axis (rotating)+ 1 axis (fixed)

Detailed Photos
Application
Applications of Swiss Machining
While Swiss machining originated in the Swiss watchmaking industry, its applications have vastly expanded across various sectors. Industries now benefiting from this cutting-edge technology include:
1) Aerospace
The aerospace industry greatly benefits from the intricate parts crafted through Swiss machining. Aerospace components, such as fans and fasteners, are frequently manufactured using Swiss machines. Metals prominently used include aluminum alloys and steel, ensuring precision and durability.
2) Medical devices
Swiss-type lathe products are extensively utilized in the medical industry for producing delicate components with high precision. This machining method is instrumental in crafting surgical instruments and implants, showcasing the transformative impact of Swiss-type lathe technology on medical device manufacturing.
3) Electronics
As modern electronics become increasingly compact and complex, traditional lathes struggle to meet production demands. Manufacturers have transitioned to advanced solutions like CNC Swiss machining, which excels at producing intricate electronic components such as connectors and pins with remarkable precision and efficiency.
4) Automotive
Swiss machining solutions are extensively utilized in the automotive industry, driving forward the latest mechanical advancements. This technology facilitates the creation of smaller, more complex components essential for modern vehicles.
Auto manufacturers leverage this advanced technology to produce suspension components, carburetor covers, and engine parts. The industry reaps substantial benefits, including reduced costs, optimized manufacturing processes, and accelerated production speeds.
Our Advantages
1. Professional Supplier: Rely on our expert team, committed to providing superior precision machinery solutions customized to meet your specific requirements.
2. Best Quality: Experience unparalleled quality standards that guarantee reliability and peak performance, underscoring our dedication to excellence.
3. Best Service: Savor exceptional customer service where your satisfaction is paramount, ensuring a smooth and seamless experience from inquiry through to delivery.
4. Best Price: Take advantage of our competitively priced offerings that deliver outstanding value without sacrificing quality or service.
Packaging & Shipping
FAQ
1.What products do we have ?
Machine :laser engraving machine ,laser cutting machine ,laser welding machine ,laser marking machine /cnc lathe machine ,swiss type cnc lathe machine ,cnc machine center
2.Why Choose us ?
1)Faster delievery time
2)Full set of production equipment
3)Any third party test can be accepted
4)Payment terms are more flexible ,both TT and LC can be accepted
5)Perfect Pre-sale and After-sale services can be provided within 24 hours online
3.What is the best advantage do we have ?
Best Quality ,Best service ,Best price

---
