Basic Info.
Model NO.
YG-08-I-4B-2M-PVC
Cable Length
Customizable
Operating Frequency
High Frequency
Application
UHF, Automobile
Surface Treatment
Nickel Plating
Housing
Brass Nickel Plating
Transport Package
Carton Packaging
Packaging & Delivery
Package Size
46.00cm * 32.00cm * 32.00cm
Package Gross Weight
0.500kg

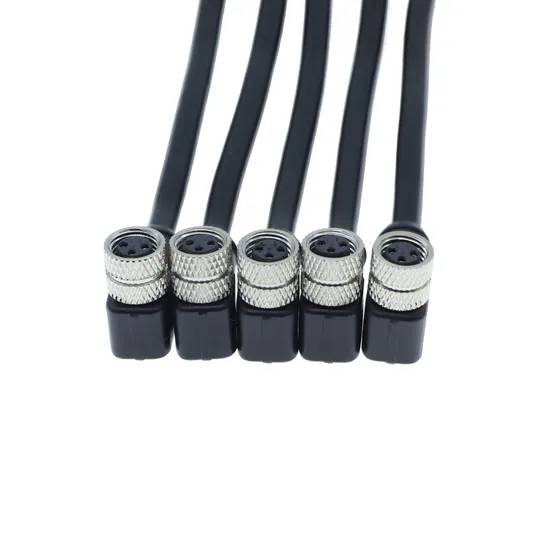

Product Description
Dimension drawin
Speclficatlions
| Pin Number | 3 | 4 |
| Connector Locking s/stem | screwM8×1 |
| Temination | soldermoulded-on cable |
| Wire gauge in mm² | 0.14mm²(AWG26),0.25mm²(AWG24),0.34mm²(AWG22) |
| Cable outlet(mm) | 3.5-5mm |
| Shell protection | IP65/IP67 |
| Mechanical operation | >100 Steckzyklen/>100 Steckzyklen |
| Upper temperature | +85ºC |
| Lowertemperature | -25ºC |
| Rated voltage | 60V | 30V |
| Rated imoulse voitage | 800V | 800V |
| Pollution degree | 3 |
| Overvoltage categorie | II |
| Materiall group | III |
| Rated current(40ºC) | 3A(0.14mm²),4A(0.25mm²) |
| Contact resistance | ≤3Ω |
| Pin contact | CuzN(Messing/brass) |
| Contact plating | Au(Gole/gold) |
| Male insert | PBT/PA(UL94HB) |
| Housing canle connectoe | PUR/PVC |
Company Profile
Instrumentation
Packaging method FAQ Q1: Are you a manufacturer? A1: We are manufacture, we can provide one-stop station service for connectors and cables with factory price.
Q2: What is the necessary information needed for quotation? A2:The series(M5/M8/M12),coding,male or female,pin number,cable length.
Q3: What is the minimum order quantity(MOQ)?
A3:100 pcs or negotiatable.
Q4: Volume order lead time? A4: 3-4 weeks. Q5: After-sales service A5: All the inquiry will be response within 24 hours, the commucation will be effective.
>>
