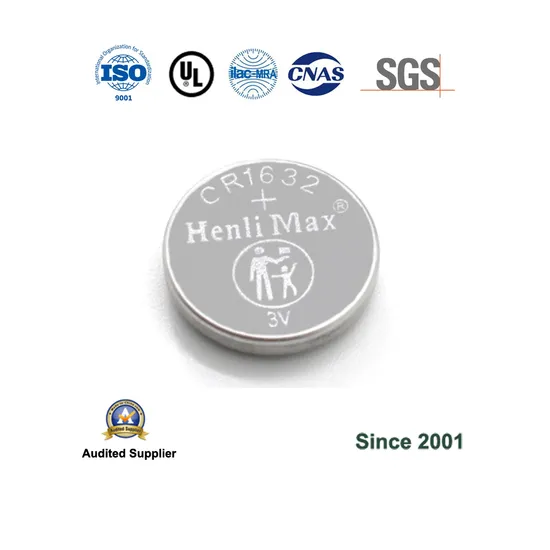

Henli Max Cr1632 Primary 3V Lithium Button Cell Coin Battery

Product Description

CR1632
Battery Outline Dimensions
Packaging and Marking

Dimension of box	Net weight	Gross weight
32.5×26.5×27cm	15.2KG	17.2KG

Normal package: 9000 pcs per box.
CR1632 Discharge Curves

Model	Discharge Characteristics(23ºC)				Dimensions		Weight (g)
	Nominal Voltage (V)	Nominal Capacity (mAh)	Recommended Continuous Drain		Diameter (mm)	Height (mm)
			High-drain Pulse (mA)	Standard Current (mA)
CR927	3.0	32	3	0.1	9.5	2.7	0.7
CR1025	3.0	30	5	0.1	10.5	2.5	0.8
CR1130	3.0	40	5	0.1	11.6	3.0	1.0
CR1212	3.0	20	5	0.1	12.5	1.2	0.6
CR1216	3.0	24	5	0.1	12.5	1.6	0.7
CR1220	3.0	36	5	0.1	12.5	2.0	0.8
CR1225	3.0	50	5	0.1	12.5	2.5	0.9
CR1616	3.0	55	5	0.2	16.0	1.6	1.2
CR1620	3.0	70	5	0.2	16.0	2.0	1.3
CR1625	3.0	85	5	0.2	16.0	2.5	1.8
CR1632	3.0	125	10	0.2	16.0	3.2	2.3
CR2016	3.0	90	10	0.2	20.0	1.6	1.7
CR2025	3.0	165	15	0.5	20.0	2.5	2.4
CR2032	3.0	220	15	0.5	20.0	3.2	3.0
CR2330	3.0	250	20	0.5	23.0	3.0	4.0
CR2354	3.0	560	20	1	23.0	5.4	5.8
CR2430	3.0	300	20	1	24.5	3.0	4.5
CR2450	3.0	600	25	3	24.5	5.0	6.5
CR2477	3.0	1000	20	1	24.5	7.7	9.5
CR3032	3.0	550	25	1	30.0	3.2	6.8

Battery processing service
According to special needs of terminal products, we can provide supporting battery processing services including Blister Pack, solder wires,solder tabs.
Discuss with us before making an order, we can help you find out the batteries that suit your products properly.
Company Profile
Changzhou Yufeng Electrical Co., Ltd was founded in 2001, and is a high-tech enterprise specialized in the R&D, production and sales of 3V primary lithium cells.Our company is located in Changzhou Photo-voltaic industrial Park, covering an area of 26000m², with more than 300 staffs, and has become the Top 2 3V Lithium button battery company in the field of industry in China. Now we produce more than 20 models of lithium button cells, with more than 400million pcs annual output.
In the past years, our company has been focusing on the technology innovation and production management. We registered 3 brands which are "Henli Max", "NSN", and "SUYU MAX" to better match different discharge characteristics requirements of various products.
Our company adhere to the key values of " Foresight, Innovation, Responsibility". We dedicate to providing high quality batteries and great service to you.
Factory
Fully-automatic producing lines
Certificates
Q&A
Q1: Do you offer OEM or ODM service?
A1: Yes, we provide sufficient services in both products of our brands and OEM/ODM products.
Q3: What is the packaging of your products?
A3: Basically we provide industrial bulk packaging, but we can also do blister card packaging and other customized packaging as client's requests.
Q4: How long it takes to ship the goods after PO?
A4: Usually 15~20 days after PO confirmed till goods ready for shipment.
Q5: Can you send some samples if possible?
A5: Yes, please send us the address and we will arrange samples for you for quality test before mass production.
Q6: How do you take payment?
A6: Most of time TT 30% in advance and 70% before shipment.
