Basic Info.
Model NO.
RT 85, 95, 105, 115, 125, 135
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Continuous Running Operation
Arbor Configuration
Horizontal Axis
Transmission
Chain Transmission
Gearbox
Casting Iron Gearbox
Transport Package
Wooden Box
Specification
CE STANDARD
Production Capacity
500 Sets Per Month
Packaging & Delivery
Package Size
166.00cm * 66.00cm * 66.00cm
Package Gross Weight
165.000kg

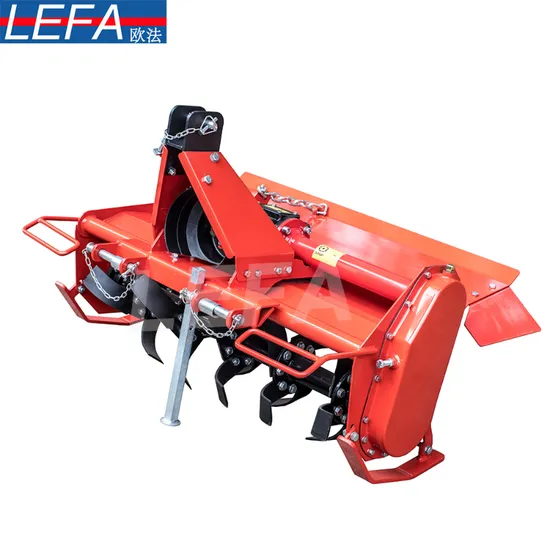

Product Description
Product Description
Specification:
Mode | RT-85 | RT-95 | RT-105 | RT-115 | RT-125 | RT-135 |
Dimension(mm) | 950*550*560 | 1050*550*560 | 1150*550*560 | 1250*550*560 | 1350*550*560 | 1450*550*560 |
Working width(cm) | 85 | 95 | 105 | 115 | 125 | 135 |
PTO Input speed(rpm) | 540r/min | 540r/min | 540r/min | 540r/min | 540r/min | 540r/min |
Weight(Kg) | 110kg | 115kg | 125kg | 135kg | 145kg | 155kg |
Number of blades | 16 | 16 | 20 | 24 | 28 | 32 |
Tilling depth(cm) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
Packing size(mm) | 1060*650*660 | 1160*650*660 | 1260*650*660 | 1360*650*660 | 1460*650*660 | 1560*650*660 |
Power required | 15-25HP | 15-25HP | 15-25HP | 20-30HP | 20-30HP | 20-30HP |
--------------------------- PRODUCT ATTRIBUTE -------------------------
1. Transmission: Chain driven.
2. Gravity gearbox is made of casting iron. Material performance is better. Not easy broken.
3. The suspension plate shape is not easy to deform.
4. Chain device hand adjustable. More easy and reliable.
5. Side protection plates are added onto the rear deflection. This device prevents the soil flying out.
6. The tilling height can be adjustable.
7. The structure is firm and stable. Detailed Photos
Company Profile
Changzhou LEFA Industry & Trade Co., Ltd., is a professional manufacturer and exporter of whole set of agriculture machines and garden tools. Our company was established since 2003 with Hanma Industry Company.
Our main products include rotovator, flail mower, finishing mower, topper mower, wood chipper, plow, cultivator, potato harvester/ planter and Japanese tractor parts, etc. Due to our super International quality standard and rapid & excellent after-sales service, LEFA machines are greatly popular in various markets around the world, and already reached to Europe, North America, South America, Australia, almost covers 80 countries in World.
LEFA always believe that we will take better farming life to you by top-quality laser cutting machine & CNC bending machine & professional paint-spraying & strong welding.
Packaging & Shipping
Packing & Shipping
Packaging Detail: Iron pallet or wooden cases
Delivery Detail: By sea or By air
1. Waterproof packing with the international export standard by 20ft, 40ftcontainer.
Wooden Case or Iron Pallet.
2. The whole set of machines size are large as normal, so we will use Waterproof materials to pack
all of them. The motor, gear box or other easily damaged parts, we will put them into box.
Machine videos in YOUTOBE
https://cnlefa.en.made-in-china.com TM TOPPER MOWERS
https://cnlefa.en.made-in-china.com RT ROTARY TILLERS
Certifications
FAQ
Q1. How to buy our Rotary Tillers?
Inquiry ---------> Quotation -------->Price reasonable ------->Check with specification ----->Proforma Invoice sent ------------>Payment made -------> Producing the items ------->Product shipment -----------> Customer confirm
Q2.How long is the delivery date for Rotary Tillers?
A:In general, we can ship the goods within 30-45 days after receiving your payment. Of course, it also depends on your quantity.
Q3. How can I get to your factory to buy Rotary Tillers?
A:We are located in Changzhou, only one hour's distance to Shanghai or Nanjing. You can fly to Shanghai/Nanjing/Changzhou Airport , the transportation is very convenient
Q4.Do you have stock for Rotary Tillers?
A:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.
Q5: What's your main products?
A: Our products are covered almost all farm machines and Japanese tractors parts, we can meet your any demands.
Q6. What is your terms of payment?
A: T/T, L/C, Paypal, Western Union
>>
