Top Brand China 25 Ton Truck Crane Qy25K5d Qy25K5d-5 Mobile Truck Crane 25t Telescopic Boom Truck Crane for Sale

Product Description

Product Description

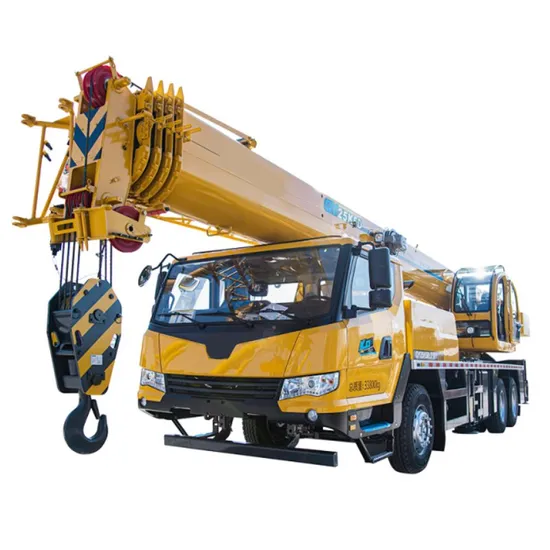

The QY25K5D is a compact and versatile 25-ton hydraulic truck crane, designed for efficient lifting and placement operations in various environments, including construction sites and industrial projects. Featuring a 5-section U-shaped boom that extends up to 41 meters, with a maximum lifting height of 48.5 meters when combined with the jib, this crane is well-suited for tasks that require both power and precision. Advantages and Features
Capacity and Dimensions
The QY25K5D offers a maximum lifting capacity of 25 tons and comes equipped with a comprehensive set of features to enhance its lifting performance. It has an overall length of 12,780 mm, a width of 2,500 mm, and a height of 3,400 mm. The outrigger span is adjustable, providing a maximum longitudinal spread of 5.14 meters and a lateral spread of 6.0 meters, ensuring stability during operations.
Engine and Mobility
Powered by either a MC07H.32-50 or a SC9DF300.1Q5 engine, this crane offers substantial power and torque, ideal for handling the demanding conditions of lifting operations. The crane can travel at a maximum speed of 80 km/h and features excellent maneuverability with a minimum turning diameter of less than 22 meters.
Performance Features
The QY25K5D's main boom reaches up to 41 meters, while the additional fixed jib extends the operational height to 48.5 meters, allowing for versatile setup configurations. The crane's hoisting, telescoping, and slewing operations are powered by a highly efficient hydraulic system that includes a constant delivery pump for smooth and precise movements. Structural and Safety Features
The crane features a robust, anti-torsion box-type frame made from high-strength steel, ensuring durability and safety. The hydraulic system includes load-sensitive proportional multi-way valves with impact-resistant and anti-cavitation valves, enhancing the operational safety and efficiency of the crane. Additional Features
The operator's cabin is ergonomically designed for comfort and includes adjustable seats, safety glass, and an integrated air-conditioning system, making it suitable for extended periods of operation. Safety devices such as hydraulic balance valves, an anemometer, and a winch monitoring device are standard, ensuring the safety of crane operations and personnel.
Overall, the QY25K5D truck crane combines advanced engineering, significant lifting capacity, and comprehensive safety features to deliver high-performance lifting capabilities suitable for a wide range of applications in the construction and industrial sectors. Product Parameters

Dimension	Unit	QY25K5D
Overall length	mm	12300
Overall width	mm	2500
Overall height	mm	3350
Weight
Total weight in travel	kg	31750
Front axle load	kg	6550
Rear axle load	kg	25200
Power
Engine model		SC8DK280Q3
Engine rated power	kW/(r/min)	206/2200
Engine rated torque	N.m/(r/min)	1112/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	22
Min. ground clearance	mm	260
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	≈37
Main performance
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	961
Base boom	m	10.4
Fully extended boom	m	39.5
Fully extended boom+jib	m	47.8
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	68
Boom full extension time	s	150
Max. swing speed	r/min	2.5
Max. speed of main winch (single rope) (no load)	m/min	125
Max. speed of aux. winch (single rope) (no load)	m/min	125
