Hot Selling Smokeless Charcoal Kiln Continuous Rotary Carbonization Furnace

Product Description

Product Description

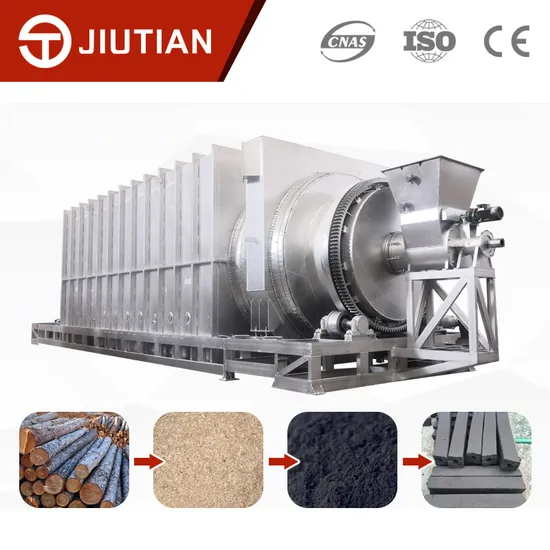

Biomass two-layer continuous drum carbonization machine is a special carbonization equipment which can carbonize coconut shell, walnut shell, apricot shell, hemp pole, sawdust, sawdust, rice husk, bamboo, eucalyptus, mushroom residue, medicine residue, furfural residue, coffee residue, palm shell.
Working principle
The biomass two-layer continuous drum carbonization machine is a professional equipment for continuous high-temperature heating and carbonization of biomass under anaerobic and oxygen-poor conditions. It consists of a two-layer carbonization machine, a pre-burner (or gasification furnace), and combustible gas purification It consists of device, external heating furnace of carbonization machine, feeding conveyor, cooling carbon machine and control. The biomass is transported by the conveyor into the inner drum. The waste heat in the furnace is used to dry and preheat the material to 200-250°C. It then enters the outer drum for high-temperature carbonization. There is a combustible gas recovery pipe at the end of the outer drum to complete the carbonization process. The CO, CHfour, CtwoHsix and other gases produced in the flue gas purification system separate the wood tar, wood acid liquid, water and ash substances to obtain pure combustible gas. The wind is sent to the external heating furnace of the carbonization machine, fully burned, and heated to the carbonization machine. , to achieve the purpose of reciprocating heating, carbonization, and continuous production. The carbonized product is discharged through a water-cooled charcoal discharge machine, and the carbonization ignition is supplied with heat by a preheating burner (or gasification furnace).
Features and Advantages
1. Strong material adaptability. Biomass with a moisture content of less than 20% and a particle size of less than 30 mm can be carbonized;
2. The quality of carbon products is good, and the carbonization rate is high. Carbon products can be used not only as fuel carbon, but also as raw materials for agricultural carbon, metallurgical carbon and activated carbon;
3. Strong carbonization depth control ability. The residual volatile matter of charcoal products is 10-25%, which can be controlled on demand;
4. The equipment is safe and environmentally friendly, stable in operation and long in service life. Choose a large number of new materials and new processes, adopt patented technology design, precision production, after a lot of practical tests, every detail is perfect, to ensure the quality of each set of equipment.
Product Parameters

Model	Inner layer diameter(mm)	Outer layer diameter(mm)	The drum length(m)	Carbon capacity(kg/h)	Dimension(m)
JTTJ1410/2	800	1400	10	300-500	10.0*2.1*2.8
JTTJ1610/2	1000	1600	10	500-700	10.0*2.3*3.0
JTTJ1810/2	1200	1800	10	700-1000	10.0*2.6*3.2
JTTJ2010/2	1400	2000	10	1100-1300	10.0*2.9*3.9
JTTJ2312/2	1600	2300	12	1500-2000	12.0*3.2*4.2
JTTJ2512/2	1800	2500	12	2200-2500	12.0*3.5*4.5
JTTJ2912/2	2200	2900	12	2700-3000	12.0*3.9*4.9
JTTJ3212/2	2500	3200	12	3300-3800	12.0*4.2*5.3
JTTJ3612/2	2900	3600	12	4000-4500	12.0*4.6*5.8

Company Profile
Founded in 2003, Zhengzhou Jiutian is an enterprise with 200 employees committed to enhancing clients productively, profitability, and safety.
Jiutian Machinery products include continuous charcoal making machine, horizontal carbonization furnace, vertical carbonization stove, activated carbon plant, briquette machine, drying machine, etc.
Certifications

Shipping

FAQ

Q1. What is the MOQ?
1 set.
Q2. Can I have different models at different prices?
Yes. There are different models according to different raw materials and different capacities.
Q3: Which areas do you serve?
We have a very big market in China local market, at the same time, we have exported our carbonization furnace all over the world, including Europe, Africa, Middle-East, Asia, North America South America and so on, total more than 30 countries in the world.
Q4. How long is the quality guarantee?
One year.
Q4. Is technical support provided?
yes

---
