3000mm Plastic Sheet Welding Rolling Bending Machine

Product Description

Some features:
1. PLC touch-panel control system, capable of automatically adjusting the heating temperature, time and pressure according to the parameters of material under processing.
2.Brand-new integrated frame, highly reliable transmission mechanism, stable in work and superior in performance.
3.Sectional heating for models of 3 meter and larger, enabling large models to have the advantage of energy conservation, as same as the small models do, while processing two small workpieces.
4.Specialized anti-corrosive surface treatment technology, making the surface coating always new as time goes by.
5.Components imported from Japan for control system, with stable properties, lasting and endurable.
Specifications:

Model	DZ3000
Horizontal Welding&Rolling Thickness	2-50
Processing Thickness(mm)	3-30
Processing Length(mm)	3000
Range of Rolling Diameter	Φ250-350
Pressure of Air Supply(kg.f/cm²)	6-8
Rated Voltage(V)	380
Heating Power(KW)	5
Power of Rolling Motor(KW)	0.75-1.1KW
Dimensions(mm)	4800x2450x1800
Applicable Materials	Plastic sheet/board made from PE, PP, PVC, PPN, PVDF

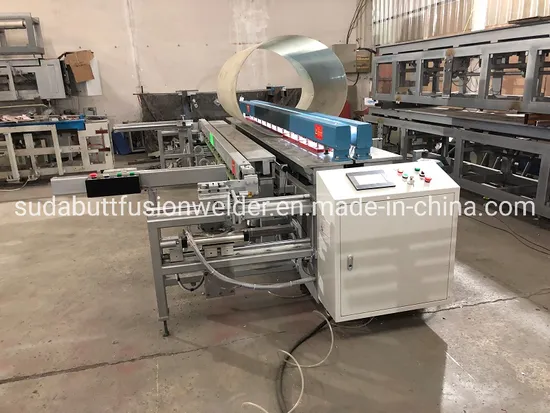

==>>Machine Photos
==>>The products by our machine processed
==>>Advantage
1.Our equipment has strong competitiveness, master the core technology, excellent r&d team and can design the machine according to customers inquiry. our device has the following characteristics:

The only updates the equipment for five generations development process
The only use of advanced technology from Germany
The only electrical integration automated system
The only design
The only practical new technology
2.Our Accessories mostly from Well-known enterprises.
3. Our automatic plastic sheet butt-welding/bending machine already service China Market 15 years old. Owning Sophisticated technical support and have experienced mechanical designers and software engineers who in this line about 10-15 years old.
4.By Absorbing the precious experience and suggestions of customers from foreigns, Our machine more practicability and competitive.
SUDA PLASTIC PIPE MACHINERY CO.,LTD. Is a professional manufacturer in China. Years of experience in producing and research, we can supply the best quality machines to all the customers.
Our products including: Hydraulic Butt Fusion Machines, Manual Butt Fusion Machines, Workshop Fitting Machines, Workshop Cutting Machines, Electrofusion Machine, HDPE Fittings, Electrofusion Fittings, Plastic Sheet Butt Welding/Rolling/Bending Machines Etc.
Customers' biggest benefit is our goal, machine's quality is the life of our company. Many years of growth, we have our best partners in the world.
We have the certificate of ISO and CE approval. This ensures our machines have the highest quality, best service and reliable warranty.
We have the concept of "Customers First, Quality Foremost", we sincerely welcome all friends visit and co-operation.

---
