Small 4th Axis Vertical Machining Center Vmc850 Vmc855 CNC Milling Machine

Product Description

Product Description
Products Description:

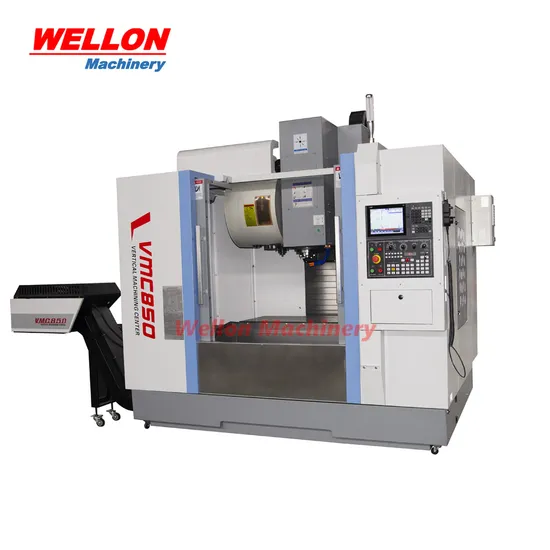

Small 4th axis vertical machining center VMC850 VMC855
Main configuration :
Main configuration & accessories:
1. Resin sand casting;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, umbrella type and disc type are available;
7. Import bearings for leadsrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosed cover;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and Internet interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Item	Unit	VMC855
X axis travel	mm	800
Y axis travel	mm	550
Z axis travel	mm	550
Spindle nose to worktable	mm	150-650
Spindle center to column	mm	550
Leadscrew diameter X,Y,Z	mm	Φ40
Linear guideway width X,Y,Z	mm	35/45/45(Roller)
Worktable Length	mm	1000
Worktable width	mm	550
Max loading capacity	kg	600
T-slots(NO./width/pitch)		5*18*90
Spindle taper		BT40-150
Spindle speed	rpm	8000
Main motor power	kw	7.5/11
Fast moving speed (X/Y/Z)	m/min	36/36/30
Cutting speed	mm/min	1-10000
Feed motor torque	N/M	12/12/22
Feed motor power	kw	2.0/2.0/3.0
Capacity	pcs	Arm type 24
Max tool diameter	mm	120
Max tool weight	kg	8
Max tool length	mm	300
Positioning accuracy	mm	0.008
Repeat accuracy	mm	0.005
Length	mm	3000
Width	mm	2300
Height	mm	2900
Weight	kg	5400

Standard accessories:
Fanuc 0i MF (5) control system 3 Axis Roller linear guideway from Taiwan
Ball leadscrew from taiwan
USB interface
Rigid tapping
Full closed cover
Automatic lubrication
Coolant system
work lamp
Tri-color indication lamp
Air gun
Heat exchanger in cabinet
Optional accessories:
Automatic chip conveyor & chip bucket (Chain type)
Automatic chip conveyor & chip bucket (Screw type)
Spindle direct driven, speed 12000 rpm
Spindle oil cooling
Spindle center water spray
Nitrogen balance cylinder
Air conditioner for electricity cabinet
Schneider electrical components
High pressure chip washing
Water gun
