Medicine Bottle Chemical Bottle Small Bottle Molding Machine

Product Description

DAWSON MACHINERY & MOULD GROUP Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

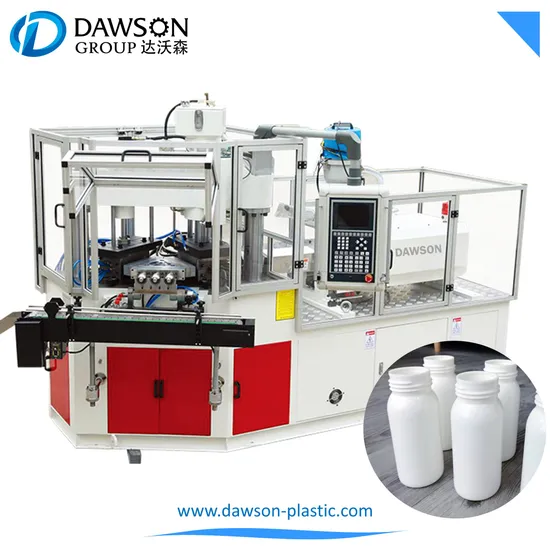

Injection Blow Molding Machine IBM65D
Injection Blow Molding Machine IBM65D

Item		Unit	Data
Injection system	Screw Diameter	mm	50
	Max. Theoretical injection capacity	G	314
	Heating capacity	KW	10
	No. of heating area	Qty	3
Clamping & blowing system	Clamping force of injection	kn	650
	Clamping force of blowing	kn	89
	Opening stroke of mold platen	mm	140
	Max. Platen size (L×W)	mm	740×390
	Min. Mold thickness (H)	mm	280
	Heating capacity of mould	KW	5.0
Product dimension range	Suitable bottle range	ml	5-800
	Max. bottle height	mm	≤200
	Max. Dia. of bottle	mm	≤80
Hydraulic driving system	Motor power	KW	17
	hydraulic pressure	Mpa	14
Pneumatic system	Min. Air pressure	Mpa	1.0
	Discharge rate of compressed air	M3/mm	≥0.8
Cooling system	Water flowage	M3/h	4
	Total rated power with mold heating	KW	45
Machine information	Dimension	M	4×1.28×2.35
	machine weight	Ton	7.5

Feature
* Excellent plasticizing unit

* Bridge clamping unit for synchronism mould open/close, cycle time less

* Servo system can save 35 to 40% energy compared to normal system

* Servo rotary, precise, long using time, easy maintenance, save energy.

* Optional injection with all-electric way, replacing hydraulic way * CE certificate
Configuration of Injection Blow Molding Machine

* Oil pump and hydraulic valve (Directional Valves, Power saving valves, Pilot operated check modular valves, and Throttle check modular valves): YUKEN brand Ex JAPAN.

* Pneumatic valve connector: FESTO Ex Germany.

* Oil seal: VALQUA brand Ex JAPAN.

* Controlling system: Act Technologies

* Electronic Rulers: Italy GEFRAN

* Molded case circuit breaker, contactor, Thermal overload relay: SCHEIDER brand Ex FRANCE.

---
