Ccec 360kw 450kVA Diesel Power Generators Powered by CUMMINS Kta19-G3 Engine

Product Details

Product Description

Product Description

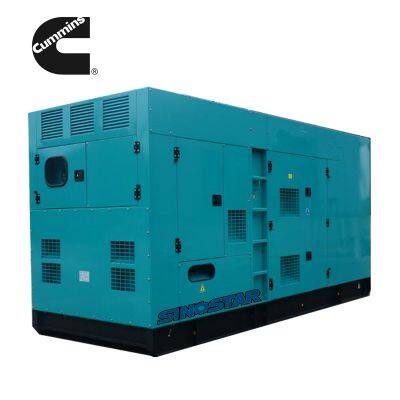

CCEC 360kw 450kVA Diesel Power Generators powered by KTA19-G3
Product features:
MODEL :SP-C500
Standby Power(50Hz) 400KW / 500KVA
Prime Power(50Hz) 360KW / 450KVA
General Features:
- Engine (CCEC KTA19-G3)
- Radiator 40OC max, fans are driven by belt, with safety guard
- 24V charge alternator
- Alternator: single bearing alternator IP23,insulation class H/H
- Absorber
- Dry type air filter, double fuel filter, oil filter,coolant filter
- Main line circuit breaker
- Standard control panel
- Two12V batteries, rack and cable
- Ripple flex exhaust pipe, exhaust siphon,flange, muffler
- User manual
ENGINE DATA
Model:CCEC KTA19-G3, 4-cycle
Air Intake System:Turbo, Water/Air cooling
Fuel System:PT type fuel pump, EFC
Cylinder Arrangement:6 in line
Displacement:18.9L
Bore and Stroke:159*159(mm)
Compression Ratio:14.5:1
Rated RPM:1500rpm
Max. Standby Power at Rated RPM:448KW/609HP
Governor Type:Electronic
Alternator Data
Number of Phase:3
Connecting Type:3 Phase and 4 Wires, “Y” type connecting
Number of Bearing:1
Power Factor:0.8
Protection Grade:IP23
Altitude:≤1000m
Exciter Type:Brushless, self-exciting
Insulation Class, Temperature Rise:H/H
Voltage Regulation, Steady State:≤±1%
Alternator Capacity:500KVA
Control panel:
-Automatic control panel(AMF),LED display.
-All protection systems
-Emergency stop
-Automatic transfer switch
-DSE/COMAP/SMARTGEN/HARSON series AMF controller

Model		SP-C500
Standby Power	kVA	500
	kW	400
Prime Power	kVA	450
	kW	360
Output Voltage	V	400/230
Oil Consumption	L/H	0.455
Dimension For Open-type	mm	3475 X 1250 X 1920
Weight For Open-type	kg	4800
Dimension For Soundproof	mm	4350 X 1450 X 2180
Weight For Soundprof	kg	5300
Engine Model		KTA19-G3
No.of Cylinder		6 Cylinder in line
Bore	mm	159
Stroke	mm	159
Displacement	L	18.9
Cooling Fan Air Flow	m3/min	588
Compress Air Flow	m3/min	34.7
Exhaust Gas Flow	m3/min	96.2
Exhaust Gas Temperature	ºC	557
Lubrication Oil Capacity	L	50
Cooling Water Capacity	L	91
Starting Voltage	V	24
Engine Max.Output Power	kW	448
Alternator Model		HCI 544 C
Alternator Brand		Stanford
Rate Output	kVA	500
Frequency	Hz	50Hz
Altitude	M	≤1000
Insulation		Class H
Protection Grade		IP23

Sale promise:
SINOSTAR Power provides a full line of brand new and high quality products. Each and every unit is strictly Factory tested.
Warranty is according to our standard conditions:
a, 15 months, counted on the day SINOSTAR sold to the first buyer;
b, One year after installation;
c, 1000 running hours (accumulated); subject to the earlier one.
Service and parts are available from SINOSTAR Power or distributors in your location.

---
