Hot Selling High Accuracy Drilling Machine

Product Description

Product Description

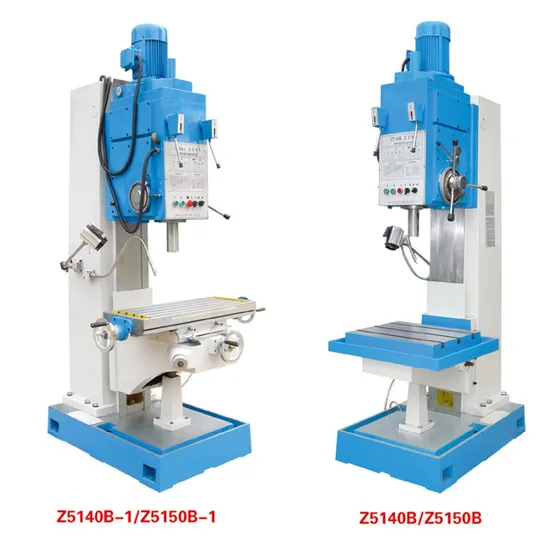

Z5140B vertical drilling machine can automatically feed, its power and mechanism strength allow the use of higher cutting parameters, so with this drilling machine can obtain higher labor productivity, and can obtain higher processing accuracy, vertical drilling spindle speed, feed have a larger range of changes, can adapt to different materials of the tool in different materials of the workpiece processing. And can adapt to the needs of drilling, sinking, reaming, tapping and other different processes, a set of multi-axis transmission head is installed in the vertical drill, can drill dozens of holes, can be used as a special machine tool for mass production.
Z5140B-1 drill machine is suitable for repair tools and other small batch production workshop, if equipped with drilling fixtures, also suitable for batch production workshop.
Z5150B vertical drilling machine can meet the needs of drilling, tapping, expanding, reaming, countersinking and various different processes, and the installation of special fixtures and tools can carry out the production and processing needs of special machines. The working table of this z5150b vertical drilling machine is a fixed style. If you need other styles, you can check other product models of our factory.
Z5150B-1 vertical drilling machine is a universal universal machine tool, the machine is a cross table. In addition to drilling, this machine can also be used for reaming, drilling countersunk hole, counterfacing, reaming, tapping, etc. The machine has the advantages of high efficiency, good rigidity, high precision, low noise and wide speed range. This machine can be vertical and horizontal, lift manual feed. Centralized control, novel shape, easy to use and maintain, suitable for repair tools and other small batch production workshop, if equipped with drilling fixtures, also suitable for batch production workshop.
Product Parameters

Specification	Unit	Z5140B	Z5140B-1	Z5150B	Z5150B-1
Max drilling diameter	mm	40		50
Spindle taper		MT4		MT5
Stroke of spindle quill	mm	250
Spindle box travel (manual)	mm	200
Spindle speed step	Steps	12
Spindle speed range	rpm	31.5~1400
Spindle feed step		9
Spindle feed range	mm/r	0.056-1.80
Table size	mm	560x480	800 x 320	560x480	80)x320
Longitudinal(cross) travel	mm	-	440/300	-	440/300
Vertical travel	mm	300
Max distance between spindle and table surface	mm	750	550	750	550
Main motor power	Kw	3
Overall size	mm	1090x905x2465	1300x1200 x 2465	1090x905x2465	1300x1200 x 2465
Net weight	Kg	1250	1350	1250	1350

---
